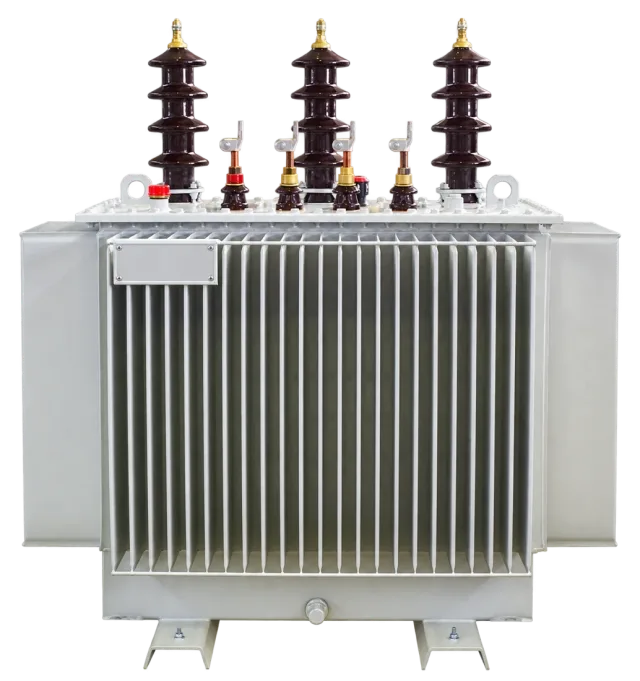

24 kV three-phase distribution transformers — 50 to 1,600 kVA

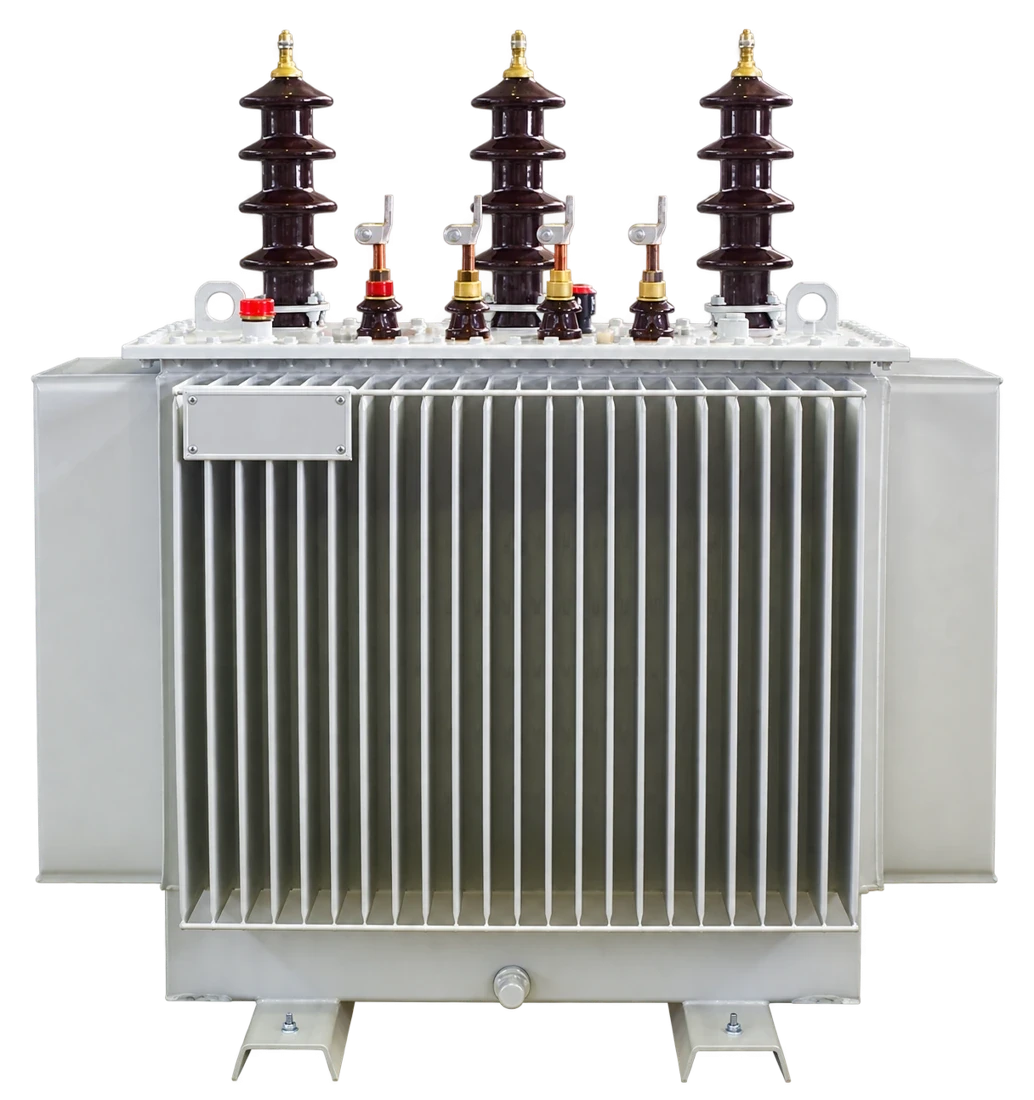

Range image — configuration depends on the selected rating and options.
At a glance
These three-phase distribution transformers transfer power from the medium-voltage network to the supplied installation. The range covers 50–1,600 kVA; the 24 kV class identifies the insulation level, not the secondary voltage.
- Transformer type
- MV/LV power distribution — three-phase, oil-immersed
- Rated power
- 50 to 1,600 kVA
- Voltage class
- 24 kV
- Available primary voltages
- 5.5 / 10 / 11 / 15 / 20 kV
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
These three-phase distribution transformers transfer power from the medium-voltage network to the supplied installation. The range covers 50–1,600 kVA; the 24 kV class identifies the insulation level, not the secondary voltage.
Fully filled hermetic or breathing construction is available according to the project. Bushings, off-circuit tap changer, handling fittings and protection are specified with the ordered configuration.
The function is to supply loads through power transfer. Specify kVA rating, operating voltages, vector group and protection to define the ordered configuration.
Applications
- Distribution substations
- Industrial power supplies
- Medium- and low-voltage networks
For a tailored quotation
Specify kVA rating, primary and secondary voltages, vector group, frequency, installation conditions and protection. Tabulated dimensions and weights are indicative: confirm the execution drawing for the ordered configuration.
Contact our team ↗Specifications
| Transformer type | MV/LV power distribution — three-phase, oil-immersed |
|---|---|
| Rated power | 50 to 1,600 kVA |
| Voltage class | 24 kV |
| Available primary voltages | 5.5 / 10 / 11 / 15 / 20 kV |
| Secondary voltage | To be specified for the network and project |
| Frequency | 50 / 60 Hz |
| Standard | IEC 60076 |
| Cooling | ONAN — natural oil and air circulation |
| Dielectric | Mineral oil to IEC 60296 |
| Windings | Copper; aluminium optional |
| Installation | Indoor or outdoor |
| Finish | RAL 7035; C5H corrosion protection |
| Connection and protection options | MV plug-in bushings and connectors, surge arresters, covers, DMCR or DGPT2 |
References and variants
Compare dimensions and configurations, then choose the variant for your quotation.
12 variants
| Reference / variant | Specifications | Quotation |
|---|---|---|
| 50 kVA | uₖ 4 % · L × W × H: 850 × 600 × 1240 mm · Total weight: 450 kg | |
| 100 kVA | uₖ 4 % · L × W × H: 900 × 630 × 1300 mm · Total weight: 585 kg | |
| 160 kVA | uₖ 4 % · L × W × H: 980 × 850 × 1300 mm · Total weight: 820 kg | |
| 250 kVA | uₖ 4 % · L × W × H: 1350 × 800 × 1500 mm · Total weight: 1100 kg | |
| 315 kVA | uₖ 4 % · L × W × H: 1200 × 880 × 1550 mm · Total weight: 1240 kg | |
| 400 kVA | uₖ 4 % · L × W × H: 1300 × 900 × 1420 mm · Total weight: 1320 kg | |
| 500 kVA | uₖ 4 % · L × W × H: 1560 × 920 × 1700 mm · Total weight: 1700 kg | |
| 630 kVA | uₖ 4 % · L × W × H: 1570 × 1030 × 1720 mm · Total weight: 1800 kg | |
| 800 kVA | uₖ 4.5 % · L × W × H: 1580 × 1050 × 1800 mm · Total weight: 2050 kg | |
| 1000 kVA | uₖ 5 % · L × W × H: 1720 × 1200 × 1750 mm · Total weight: 2530 kg | |
| 1250 kVA | uₖ 5.5 % · L × W × H: 2000 × 1230 × 1850 mm · Total weight: 3550 kg | |
| 1600 kVA | uₖ 6 % · L × W × H: 2120 × 1300 × 2180 mm · Total weight: 4240 kg |
