Breakaway suspension assembly ESF 54/70
Reference: ESF 54/70

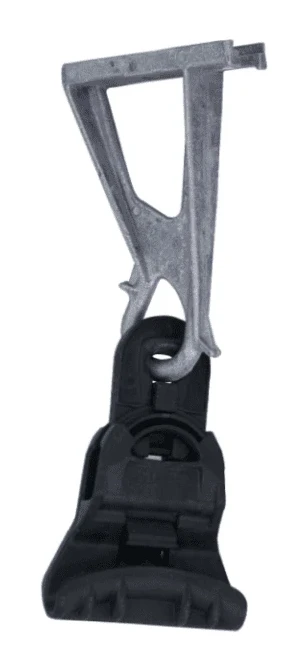

Model image. Confirm the variant and specifications with the offer.
At a glance
Suspension assembly for the insulated neutral messenger of a low-voltage overhead network, combining a bracket, moving link and suspension clamp.
- Rated voltage
- 0.6 / 1 kV
- Neutral messenger cross-sections
- 54.6 / 70 mm²
- CS1500 bracket breaking load
- ≥ 1 312 daN
- Link + clamp breaking load
- 650–900 daN
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Suspension assembly for the insulated neutral messenger of a low-voltage overhead network, combining a bracket, moving link and suspension clamp.
The LM54/70 link includes a mechanical breakaway element intended to limit transmitted loads under abnormal tension.
Neutral 54.6 mm² — Outside diameter 12.3–13 mm
Neutral 70 mm² — Outside diameter 12.9–13.6 mm
Applications
- Overhead electrical networks
For a tailored quotation
Specify the reference, conductor type and cross-section, network voltage, required mechanical loads, quantity and destination. Confirm assembly compatibility and the offered version with the quotation.
Contact our team ↗Specifications
| Reference | ESF 54/70 |
|---|---|
| Rated voltage | 0.6 / 1 kV |
| Neutral messenger cross-sections | 54.6 / 70 mm² |
| CS1500 bracket breaking load | ≥ 1 312 daN |
| Link + clamp breaking load | 650–900 daN |
| Slipping load | 30 daN |
| Listed standards | NFC33-040 / EN 50483-3 |
