BVC wall sandwich panel — concealed fixing
Reference: BVC
Panneaux du Maghreb range image; configuration depends on the selected model and options.
At a glance
Insulated wall panel with an interlocking concealed-fixing joint for a continuous wall finish.
- Effective width
- 1 000 mm
- Manufacturing length
- 2 to 12 m
- Insulating core
- CFC-free rigid PUR foam
- Insulation density
- 40 ± 3 kg/m³
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail

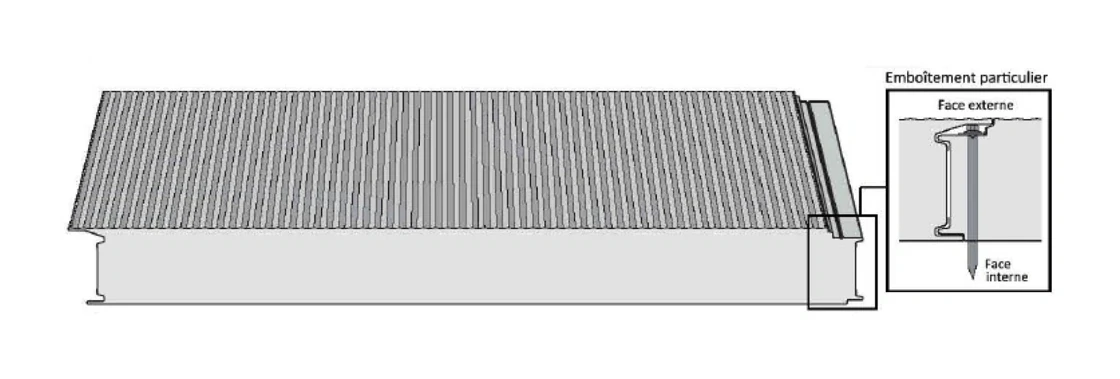

BVC uses a specific interlocking joint to conceal the fixing between adjacent panels. It suits projects requiring a wall or partition without exposed screws across the main surface.
The PUR core is protected by prepainted galvanised steel facings. The sheet lists ribbed, slatted, diamond-pattern and smooth finishes in 40, 50 and 60 mm thicknesses. Vertical or horizontal installation and fixing selection depend on the supporting structure.
Applications
- Concealed-fixing cladding
- Insulated partitions and walls
- Industrial and modular buildings
For a tailored quotation
Specify area, lengths, thickness, facings, colour, support spacing, project loads and destination. Panel sizing and fixings must match the selected configuration.
Contact our team ↗Specifications
| Brand | Panneaux du Maghreb |
|---|---|
| Reference | BVC |
| Effective width | 1 000 mm |
| Manufacturing length | 2 to 12 m |
| Insulating core | CFC-free rigid PUR foam |
| Insulation density | 40 ± 3 kg/m³ |
| Facings | Prepainted galvanised steel sheet |
| External facing thickness | 0.40 / 0.50 mm |
| Declared insulation conductivity | 0.022 W/(m·K) |
| Declared reaction to fire | B-s3,d0 — as stated in the manufacturer sheet |
| Listed colours | RAL 9010, 9002, 9007, 6017, 5015, 1016, 3020 |
| Documented thicknesses | 40 / 50 / 60 mm |
| Facing profiles | Ribbed, slatted, diamond-pattern, smooth |
References and variants
Compare dimensions and configurations, then choose the variant for your quotation.
3 variants
| Reference / variant | Specifications | Quotation |
|---|---|---|
| 40 mm | U: 0.551 W/(m²·K) · weight: 7.56 kg/m² | |
| 50 mm | U: 0.447 W/(m²·K) · weight: 7.95 kg/m² | |
| 60 mm | U: 0.375 W/(m²·K) · weight: 8.34 kg/m² |
