OrmazabalOrmazabal cgm.3-2lp — Compact medium-voltage (MV) switchgear — Two lines and fuse protection
Ref. cgm.3-2lp
Ormazabal cgm.3-p — Medium-voltage (MV) switchgear cubicle — Switch-fuse protection
Reference: cgm.3-p

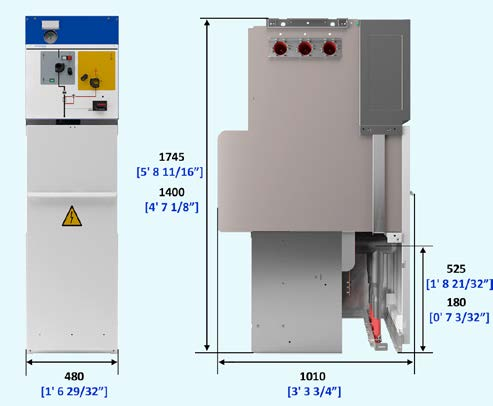

Original manufacturer dimensional view; dimensions and equipment depend on configuration.
At a glance
Ormazabal cgm.3-p is medium-voltage (MV) switchgear cubicle for electrical distribution substations. Function: Switch-fuse protection.
- Product type
- Medium-voltage (MV) switchgear cubicle
- Range
- cgm.3
- Function
- Switch-fuse protection
- Rated voltage — IEC
- 36 / 38.5 / 40.5 kV depending on version
Build your quotationTailored quotation
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Ormazabal cgm.3-p is medium-voltage (MV) switchgear cubicle for electrical distribution substations. Function: Switch-fuse protection.
State the network voltage, single-line diagram, current ratings, short-circuit duty, protection and room dimensions. Configuration, options, suitability for the destination network and lead time are confirmed with the quotation.
Applications
- Medium-voltage distribution substations
- Industrial and commercial electrical installations
For a tailored quotation
State the network voltage, single-line diagram, current ratings, short-circuit duty, protection and room dimensions. Configuration, options, suitability for the destination network and lead time are confirmed with the quotation.
Contact our team ↗Specifications
| Brand | Ormazabal |
|---|---|
| Reference | cgm.3-p |
| Product type | Medium-voltage (MV) switchgear cubicle |
| Range | cgm.3 |
| Function | Switch-fuse protection |
| Rated voltage — IEC | 36 / 38.5 / 40.5 kV depending on version |
| Frequency | 50 / 60 Hz |
| Insulation | SF6 gas |
| Rated current | Up to 630 A depending on voltage and version |
| Fuse-protected feeder | 200 A; size fuses for the transformer |
Manufacturer documentation
Open documents in a reading window without leaving this page.
MV SWITCHGEAR · AFRICA EXPORT
Your export quotation for cgm.3-p
Prepare a medium-voltage switchgear enquiry from Tunisia for your project in Africa. Specify network characteristics, required functions and the receiving location.
Prepare an enquiry for this switchgear →Details to specify
- Network voltage, required rated voltage and frequency.
- Rated current and short-circuit withstand with duration.
- Protection or coupling function, relay, current transformers and feeder requirements.
- Quantity, destination, room constraints and preferred timing.
The diagram and specifications are confirmed when reviewing your enquiry.
Explore MV switchgear functions →Ormazabal
