Ormazabal cgm.zero24-p — Medium-voltage (MV) switchgear cubicle — Switch-fuse protection
Reference: cgm.zero24-p

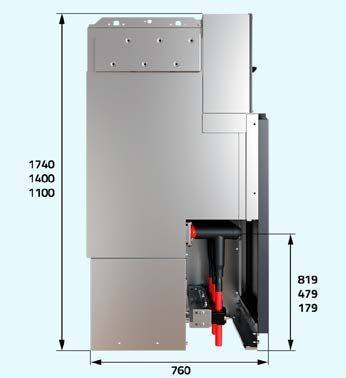

Original manufacturer dimensional view; dimensions and equipment depend on configuration.
At a glance
Ormazabal cgm.zero24-p is medium-voltage (MV) switchgear cubicle for electrical distribution substations. Function: Switch-fuse protection.
- Product type
- Medium-voltage (MV) switchgear cubicle
- Range
- cgm.zero24
- Function
- Switch-fuse protection
- Rated voltage — IEC
- 24 kV
Build your quotationTailored quotation
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Ormazabal cgm.zero24-p is medium-voltage (MV) switchgear cubicle for electrical distribution substations. Function: Switch-fuse protection.
The cgm.zero24 range uses fluorinated-gas-free insulation. Metering and cable-riser cubicles are air-insulated modules; each module’s function and options are selected separately.
State the network voltage, single-line diagram, current ratings, short-circuit duty, protection and room dimensions. Configuration, options, suitability for the destination network and lead time are confirmed with the quotation.
Applications
- Medium-voltage distribution substations
- Industrial and commercial electrical installations
For a tailored quotation
State the network voltage, single-line diagram, current ratings, short-circuit duty, protection and room dimensions. Configuration, options, suitability for the destination network and lead time are confirmed with the quotation.
Contact our team ↗Specifications
| Brand | Ormazabal |
|---|---|
| Reference | cgm.zero24-p |
| Product type | Medium-voltage (MV) switchgear cubicle |
| Range | cgm.zero24 |
| Function | Switch-fuse protection |
| Rated voltage — IEC | 24 kV |
| Frequency | 50 / 60 Hz |
| Insulation | Industrial natural air — fluorinated-gas-free |
| Rated current | 400 / 630 A |
| Fuse-protected feeder | 200 A; size fuses for the transformer |
Manufacturer documentation
Open documents in a reading window without leaving this page.
MV SWITCHGEAR · AFRICA EXPORT
Your export quotation for cgm.zero24-p
Prepare a medium-voltage switchgear enquiry from Tunisia for your project in Africa. Specify network characteristics, required functions and the receiving location.
Prepare an enquiry for this switchgear →Details to specify
- Network voltage, required rated voltage and frequency.
- Rated current and short-circuit withstand with duration.
- Protection or coupling function, relay, current transformers and feeder requirements.
- Quantity, destination, room constraints and preferred timing.
The diagram and specifications are confirmed when reviewing your enquiry.
