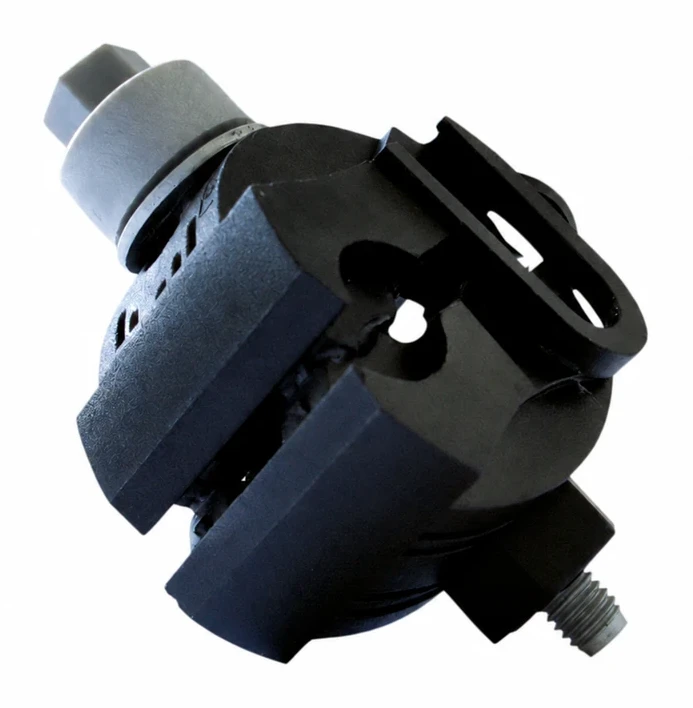

CPA25 insulation-piercing service connector
Reference: CPA25
Image retouched to remove commercial branding. Confirm the variant and specifications with the offer.
At a glance
Insulation-piercing connector for low-voltage service-to-service connections with simultaneous tightening. Main and branch conductors range from 10 to 25 mm².
- Rated voltage
- 0.6 / 1 kV
- Listed dielectric withstand
- 6 kV in water
- Listed standards
- NFC33-020 / EN 50483-4
- Materials
- Aluminium-alloy or tinned-copper-alloy contact blades
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Insulation-piercing connector for low-voltage service-to-service connections with simultaneous tightening. Main and branch conductors range from 10 to 25 mm².
CBS/CT25 — Main 10-25 mm²; branch 10-25 mm²; aluminium alloy; torque 12 N·m
CBS/CT25 — Main 10-25 mm²; branch 10-25 mm²; tinned copper alloy; torque 12 N·m
Applications
- Low-voltage overhead networks
- Insulated conductor connections
For a tailored quotation
Specify the reference, conductor type and cross-section, network voltage, required mechanical loads, quantity and destination. Confirm assembly compatibility and the offered version with the quotation.
Contact our team ↗Specifications
| Reference | CPA25 |
|---|---|
| Rated voltage | 0.6 / 1 kV |
| Listed dielectric withstand | 6 kV in water |
| Listed standards | NFC33-020 / EN 50483-4 |
| Materials | Aluminium-alloy or tinned-copper-alloy contact blades |
| Main / branch ranges | 10–25 / 10–25 mm² |
| Tightening torque | 12 N·m |
