Galvanised octagonal lighting column — with twin brackets
Reference: EP-OCTO-CD

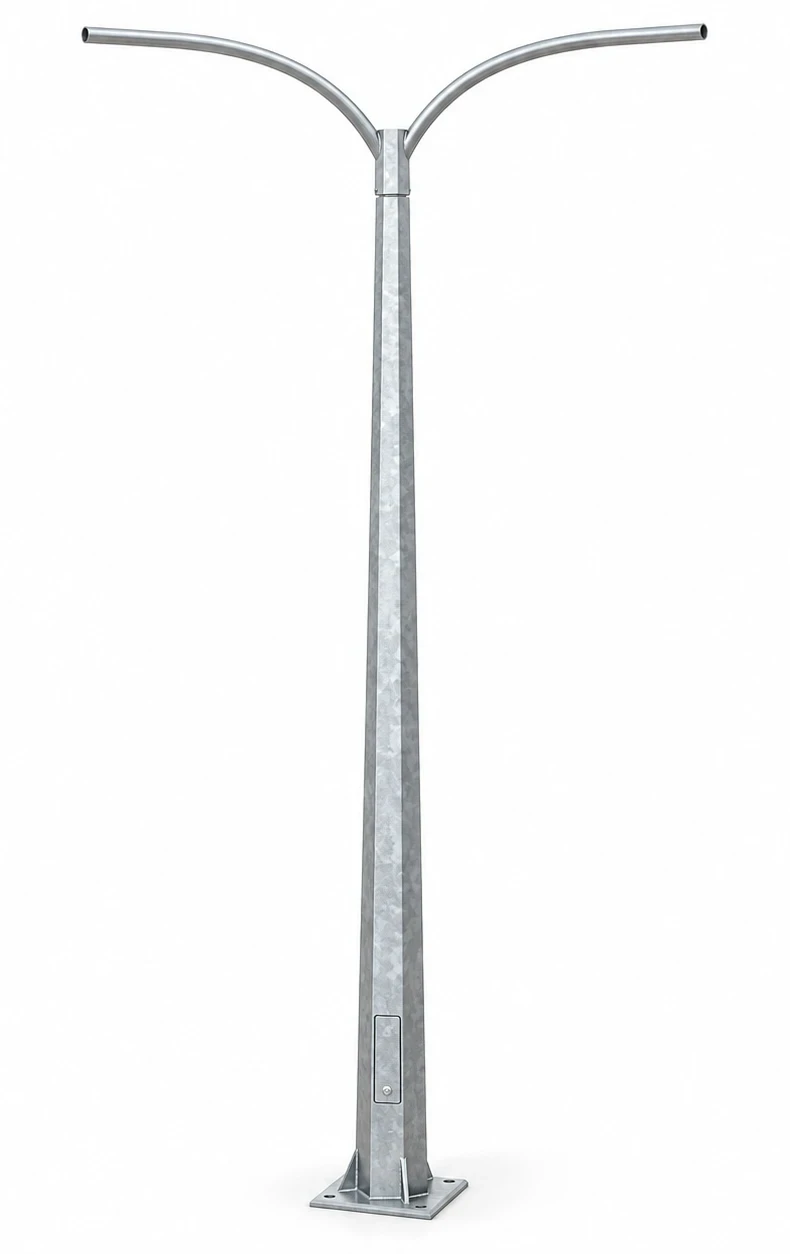

Illustration created for MWB. Configuration and dimensions depend on the selected specification.
At a glance
Octagonal street lighting support, with twin brackets, for central road reservations and large outdoor areas. Height and equipment are selected for the project.
- Shaft shape
- Octagonal
- Material
- Steel
- Protection
- Hot-dip galvanising
- Top arrangement
- On two opposing brackets
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
This galvanised steel column combines a octagonal shaft and a with twin brackets configuration. It positions two luminaires to light central road reservations and large outdoor areas.
Two opposing brackets provide a mounting position on each side. Arm length, orientation and the specifications of both luminaires must be included in the structural design.
Height, shaft thickness, base plate and anchor rods are specified for wind, ground conditions and fitted equipment. Allow for electrical connection access and earthing. Define luminaires, the base connection box and foundations separately.
Applications
- Central road reservations and large outdoor areas
- Commercial and industrial outdoor lighting
- New or replacement street lighting
For a tailored quotation
Specify required height, layout, luminaire quantity, weight and wind area, bracket outreach, finish, site and quantities. Attach luminaire data sheets to define a compatible assembly.
Contact our team ↗Specifications
| Reference | EP-OCTO-CD |
|---|---|
| Shaft shape | Octagonal |
| Material | Steel |
| Protection | Hot-dip galvanising |
| Top arrangement | On two opposing brackets |
| Luminaire positions | 2 |
| Height | To suit installation and design |
| Illustrated fixing | Base plate with four anchors |
| Additional finish | Powder coating and colour on request |
| Lighting equipment | Luminaire selected separately |
