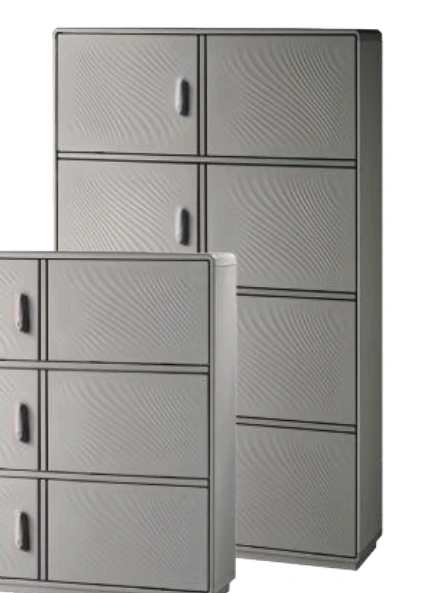

Grafi 12 width 1150mm — Double door 3 compartments
Reference: MWB-35907B3633
Grafi 12 width 1150mm — Double door 3 compartments
- MWB catalogue reference
- MWB-35907B3633
- Dimension B (mm)
- 1150
- Dimension B (mm) [2]
- 1132
Build your quotationTailored quotation
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Grafi 12 width 1150mm — Double door 3 compartments. It closes or protects the corresponding part of the system while retaining the model’s mating geometry. Select its dimensions together with those of the matching assembly.
Dimension B (mm): 1150. Dimension B (mm) [2]: 1132. The variants below retain their exact reference and the specifications recorded for each. Check the selected variant’s dimensions, connection and finish in the associated technical table when assembling the system.
Applications
- It closes or protects the corresponding part of the system while retaining the model’s mating geometry. Select its dimensions together with those of the matching assembly.
For a tailored quotation
Specify the reference, quantity and installation requirements. MWB TRADING checks availability and prepares a quotation for your project and delivery country.
Contact our team ↗Specifications
| Reference | MWB-35907B3633 |
|---|---|
| MWB catalogue reference | MWB-35907B3633 |
| Dimension B (mm) | 1150 |
| Dimension B (mm) [2] | 1132 |
References and variants
Compare dimensions and configurations, then choose the variant for your quotation.
16 variants
| Reference / variant | Specifications | Quotation |
|---|---|---|
| 077126316 | Model: G12-6/111A/T; Dimension B (mm): 1150; Height H (mm): 1120; Dimension P (mm): 330; Dimension B (mm) [2]: 1132; Height H (mm) [2]: a-b-c = 343; Dimension P (mm) [2]: 298 | |
| 077128312 | Model: G12-8/222A/T; Dimension B (mm): 1150; Height H (mm): 1390; Dimension P (mm): 330; Dimension B (mm) [2]: 1132; Dimension P (mm) [2]: 298 | |
| 077129310 | Model: G12-9/522A/T; Dimension B (mm): 1150; Height H (mm): 1840; Dimension P (mm): 330; Dimension B (mm) [2]: 1132; Dimension P (mm) [2]: 298 | |
| 077129328 | Model: G12-9/442A/T; Dimension B (mm): 1150; Height H (mm): 1840; Dimension P (mm): 330; Dimension B (mm) [2]: 1132; Dimension P (mm) [2]: 298 | |
| 077136315 | Model: GH12-6/111A/T; Dimension B (mm): 1150; Height H (mm): 1120; Dimension P (mm): 460; Dimension B (mm) [2]: 1132; Height H (mm) [2]: a-b-c = 343; Dimension P (mm) [2]: 428 | |
| 077138311 | Model: GH12-8/222A/T; Dimension B (mm): 1150; Height H (mm): 1390; Dimension P (mm): 460; Dimension B (mm) [2]: 1132; Dimension P (mm) [2]: 428 | |
| 077139319 | Model: GH12-9/522A/T; Dimension B (mm): 1150; Height H (mm): 1840; Dimension P (mm): 460; Dimension B (mm) [2]: 1132; Dimension P (mm) [2]: 428 | |
| 077139327 | Model: GH12-9/442A/T; Dimension B (mm): 1150; Height H (mm): 1840; Dimension P (mm): 460; Dimension B (mm) [2]: 1132; Dimension P (mm) [2]: 428 | |
| 078126315 | Model: G12-6/111A/T-4; Dimension B (mm): 1150; Height H (mm): 1120; Dimension P (mm): 330; Dimension B (mm) [2]: 1132; Height H (mm) [2]: a-b-c = 343; Dimension P (mm) [2]: 298 | |
| 078128311 | Model: G12-8/222A/T-4; Dimension B (mm): 1150; Height H (mm): 1390; Dimension P (mm): 330; Dimension B (mm) [2]: 1132; Dimension P (mm) [2]: 298 | |
| 078129319 | Model: G12-9/522A/T-4; Dimension B (mm): 1150; Height H (mm): 1840; Dimension P (mm): 330; Dimension B (mm) [2]: 1132; Dimension P (mm) [2]: 298 | |
| 078129327 | Model: G12-9/442A/T-4; Dimension B (mm): 1150; Height H (mm): 1840; Dimension P (mm): 330; Dimension B (mm) [2]: 1132; Dimension P (mm) [2]: 298 | |
| 078136314 | Model: GH12-6/111A/T-4; Dimension B (mm): 1150; Height H (mm): 1120; Dimension P (mm): 460; Dimension B (mm) [2]: 1132; Height H (mm) [2]: a-b-c = 343; Dimension P (mm) [2]: 428 | |
| 078138310 | Model: GH12-8/222A/T-4; Dimension B (mm): 1150; Height H (mm): 1390; Dimension P (mm): 460; Dimension B (mm) [2]: 1132; Dimension P (mm) [2]: 428 | |
| 078139318 | Model: GH12-9/522A/T-4; Dimension B (mm): 1150; Height H (mm): 1840; Dimension P (mm): 460; Dimension B (mm) [2]: 1132; Dimension P (mm) [2]: 428 | |
| 078139326 | Model: GH12-9/442A/T-4; Dimension B (mm): 1150; Height H (mm): 1840; Dimension P (mm): 460; Dimension B (mm) [2]: 1132; Dimension P (mm) [2]: 428 |
