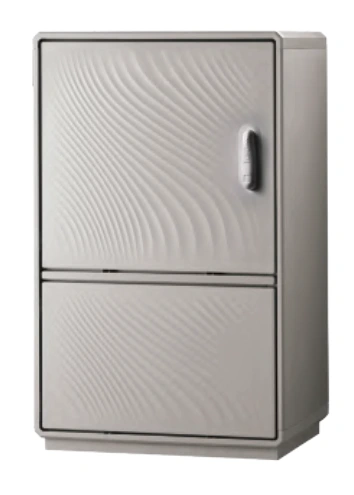

Grafi 5 width 580 mm — 1 compartment with plinth
Reference: MWB-0800F38BF6
Grafi 5 width 580 mm — 1 compartment with plinth
- MWB catalogue reference
- MWB-0800F38BF6
- Dimension B (mm)
- 580
- Dimension B (mm) [2]
- 562
Build your quotationTailored quotation
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Grafi 5 width 580 mm — 1 compartment with plinth. This component provides mounting, support or mechanical connection within the specified system. Its form and connection points determine its position in the assembly.
Dimension B (mm): 580. Dimension B (mm) [2]: 562. The variants below retain their exact reference and the specifications recorded for each. Check the selected variant’s dimensions, connection and finish in the associated technical table when assembling the system.
Applications
- This component provides mounting, support or mechanical connection within the specified system. Its form and connection points determine its position in the assembly.
For a tailored quotation
Specify the reference, quantity and installation requirements. MWB TRADING checks availability and prepares a quotation for your project and delivery country.
Contact our team ↗Specifications
| Reference | MWB-0800F38BF6 |
|---|---|
| MWB catalogue reference | MWB-0800F38BF6 |
| Dimension B (mm) | 580 |
| Dimension B (mm) [2] | 562 |
References and variants
Compare dimensions and configurations, then choose the variant for your quotation.
20 variants
| Reference / variant | Specifications | Quotation |
|---|---|---|
| 077505188 | Model: G5-5/22/ZT; Dimension B (mm): 580; Height H (mm): 940; Dimension P (mm): 330; Dimension B (mm) [2]: 562; Dimension P (mm) [2]: 298 | |
| 077505196 | Model: G5-5/13/ZT; Dimension B (mm): 580; Height H (mm): 940; Dimension P (mm): 330; Dimension B (mm) [2]: 562; Height H (mm) [2]: a= 523; Dimension P (mm) [2]: 298 | |
| 077506194 | Model: G5-6/33/ZT; Dimension B (mm): 580; Height H (mm): 1120; Dimension P (mm): 330; Dimension B (mm) [2]: 562; Dimension P (mm) [2]: 298 | |
| 077508190 | Model: G5-8/25/ZT; Dimension B (mm): 580; Height H (mm): 1390; Dimension P (mm): 330; Dimension B (mm) [2]: 562; Dimension P (mm) [2]: 298 | |
| 077509198 | Model: G5-9/28/ZT; Dimension B (mm): 580; Height H (mm): 1840; Dimension P (mm): 330; Dimension B (mm) [2]: 562; Dimension P (mm) [2]: 298 | |
| 077515187 | Model: GH5-5/22/ZT; Dimension B (mm): 580; Height H (mm): 940; Dimension P (mm): 460; Dimension B (mm) [2]: 562; Dimension P (mm) [2]: 428 | |
| 077515195 | Model: GH5-5/13/ZT; Dimension B (mm): 580; Height H (mm): 940; Dimension P (mm): 460; Dimension B (mm) [2]: 562; Height H (mm) [2]: a= 523; Dimension P (mm) [2]: 428 | |
| 077516193 | Model: GH5-6/33/ZT; Dimension B (mm): 580; Height H (mm): 1120; Dimension P (mm): 460; Dimension B (mm) [2]: 562; Dimension P (mm) [2]: 428 | |
| 077518199 | Model: GH5-8/25/ZT; Dimension B (mm): 580; Height H (mm): 1390; Dimension P (mm): 460; Dimension B (mm) [2]: 562; Dimension P (mm) [2]: 428 | |
| 077519197 | Model: GH5-9/28/ZT; Dimension B (mm): 580; Height H (mm): 1840; Dimension P (mm): 460; Dimension B (mm) [2]: 562; Dimension P (mm) [2]: 428 | |
| 078505187 | Model: G5-5/22/ZT-4; Dimension B (mm): 580; Height H (mm): 940; Dimension P (mm): 330; Dimension B (mm) [2]: 562; Dimension P (mm) [2]: 298 | |
| 078505195 | Model: G5-5/13/ZT-4; Dimension B (mm): 580; Height H (mm): 940; Dimension P (mm): 330; Dimension B (mm) [2]: 562; Height H (mm) [2]: a= 523; Dimension P (mm) [2]: 298 | |
| 078506193 | Model: G5-6/33/ZT-4; Dimension B (mm): 580; Height H (mm): 1120; Dimension P (mm): 330; Dimension B (mm) [2]: 562; Dimension P (mm) [2]: 298 | |
| 078508199 | Model: G5-8/25/ZT-4; Dimension B (mm): 580; Height H (mm): 1390; Dimension P (mm): 330; Dimension B (mm) [2]: 562; Dimension P (mm) [2]: 298 | |
| 078509197 | Model: G5-9/28/ZT-4; Dimension B (mm): 580; Height H (mm): 1840; Dimension P (mm): 330; Dimension B (mm) [2]: 562; Dimension P (mm) [2]: 298 | |
| 078515186 | Model: GH5-5/22/ZT-4 20, 28, 46, 52; Dimension B (mm): 580; Height H (mm): 940; Dimension P (mm): 460; Dimension B (mm) [2]: 562; Dimension P (mm) [2]: 428 | |
| 078515194 | Model: GH5-5/13/ZT-4 20, 28, 46, 52; Dimension B (mm): 580; Height H (mm): 940; Dimension P (mm): 460; Dimension B (mm) [2]: 562; Height H (mm) [2]: a= 523; Dimension P (mm) [2]: 428 | |
| 078516193 | Model: GH5-6/33/ZT-4; Dimension B (mm): 580; Height H (mm): 1120; Dimension P (mm): 460; Dimension B (mm) [2]: 562; Dimension P (mm) [2]: 428 | |
| 078518198 | Model: GH5-8/25/ZT-4 20, 28, 46, 52; Dimension B (mm): 580; Height H (mm): 1390; Dimension P (mm): 460; Dimension B (mm) [2]: 562; Dimension P (mm) [2]: 428 | |
| 078519196 | Model: GH5-9/28/ZT-4 20, 28, 46, 52; Dimension B (mm): 580; Height H (mm): 1840; Dimension P (mm): 460; Dimension B (mm) [2]: 562; Dimension P (mm) [2]: 428 |
