Kravel ICTA 2222 electrical conduit
Reference: ICTA 2222
At a glance
Grey corrugated conduit with draw wire for protecting building wiring. Available in 16 to 50 mm external diameters with 320 N compression resistance.
- Material
- Polyolefin
- Colour
- Grey
- Classification
- 2222
- Compression resistance
- 320 N at 20 °C
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail

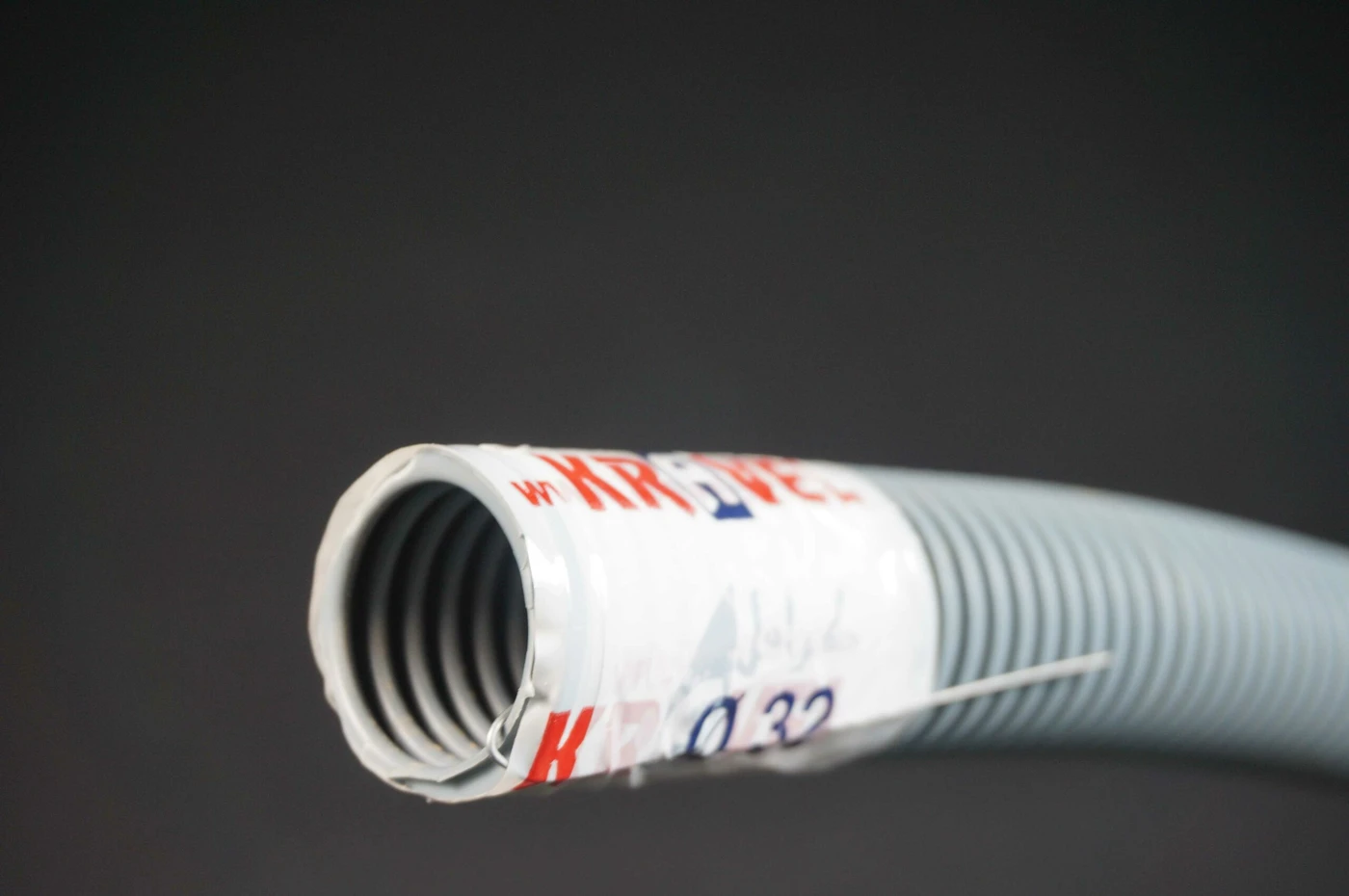

Kravel ICTA 2222 corrugated conduit protects surface-mounted or concealed wiring inside buildings. Its bendable profile supports cable routing, while the draw wire helps prepare conductor installation.

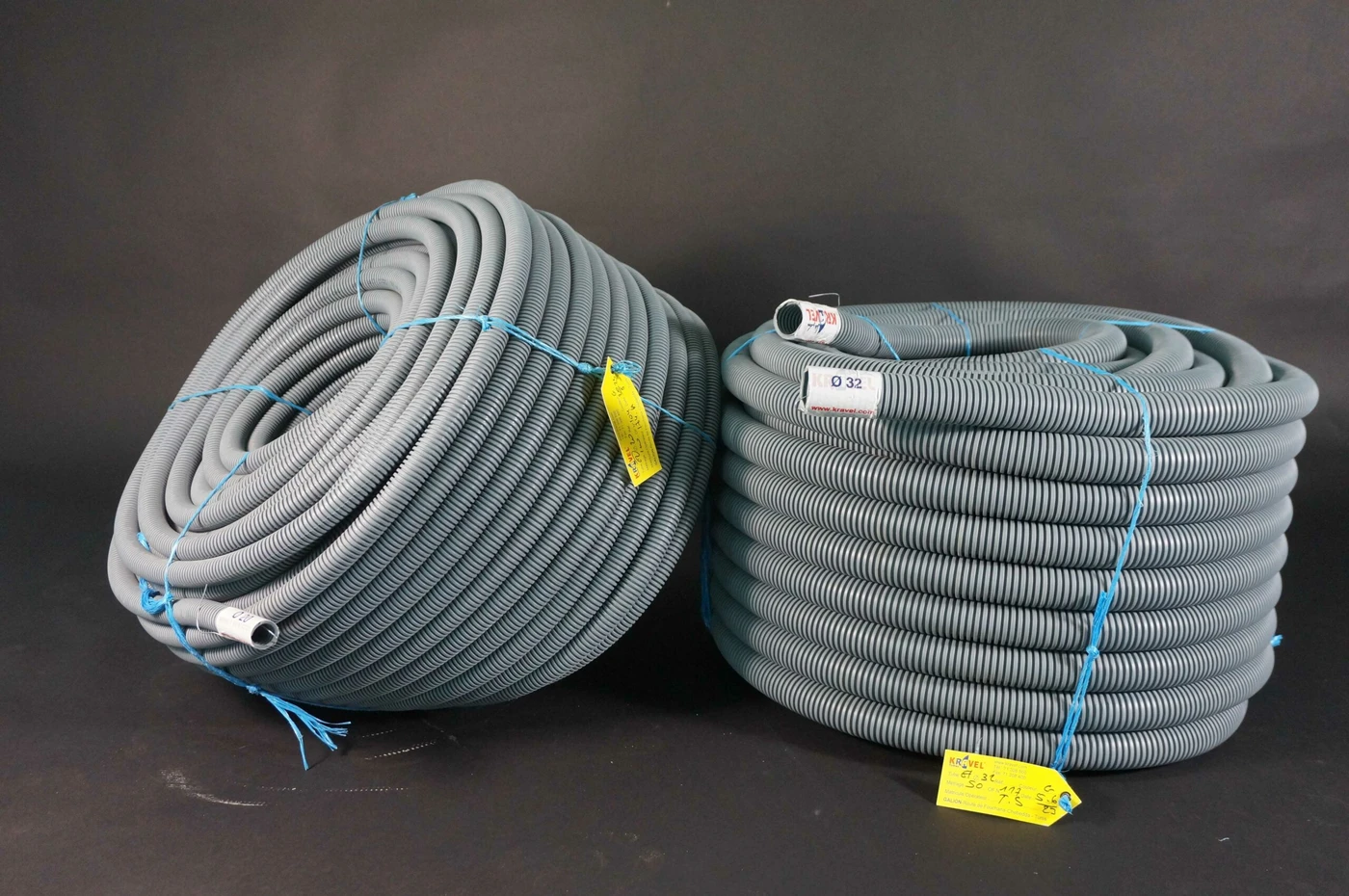

The polyolefin range covers six external diameters from 16 to 50 mm. Coils are 100 m long in 16, 20 and 25 mm sizes and 50 m long in 32, 40 and 50 mm sizes. Blue tying cord and a yellow identification label distinguish the range.
The technical sheet specifies 320 N compression resistance, 1 J impact resistance at -5 °C and non-flame-propagating behaviour. Select the conduit size for the conductors, routing and installation conditions.
Applications
- Indoor wiring protection
- Surface-mounted or concealed installation
- New construction and refurbishment
For a tailored quotation
Specify the external diameter, number of coils and required length. Check circuit fill and bend requirements before ordering.
Contact our team ↗Specifications
| Brand | KRAVEL |
|---|---|
| Reference | ICTA 2222 |
| Material | Polyolefin |
| Colour | Grey |
| Classification | 2222 |
| Compression resistance | 320 N at 20 °C |
| Impact resistance | 1 J at -5 °C |
| Installation and operating temperature | -5 to +90 °C |
| Fire behaviour | Non-flame-propagating |
| Protection stated in the technical sheet | IP44 / IK06 |
| Draw wire | Yes |
