Official image for reference 067083A.
Manufacturer reference

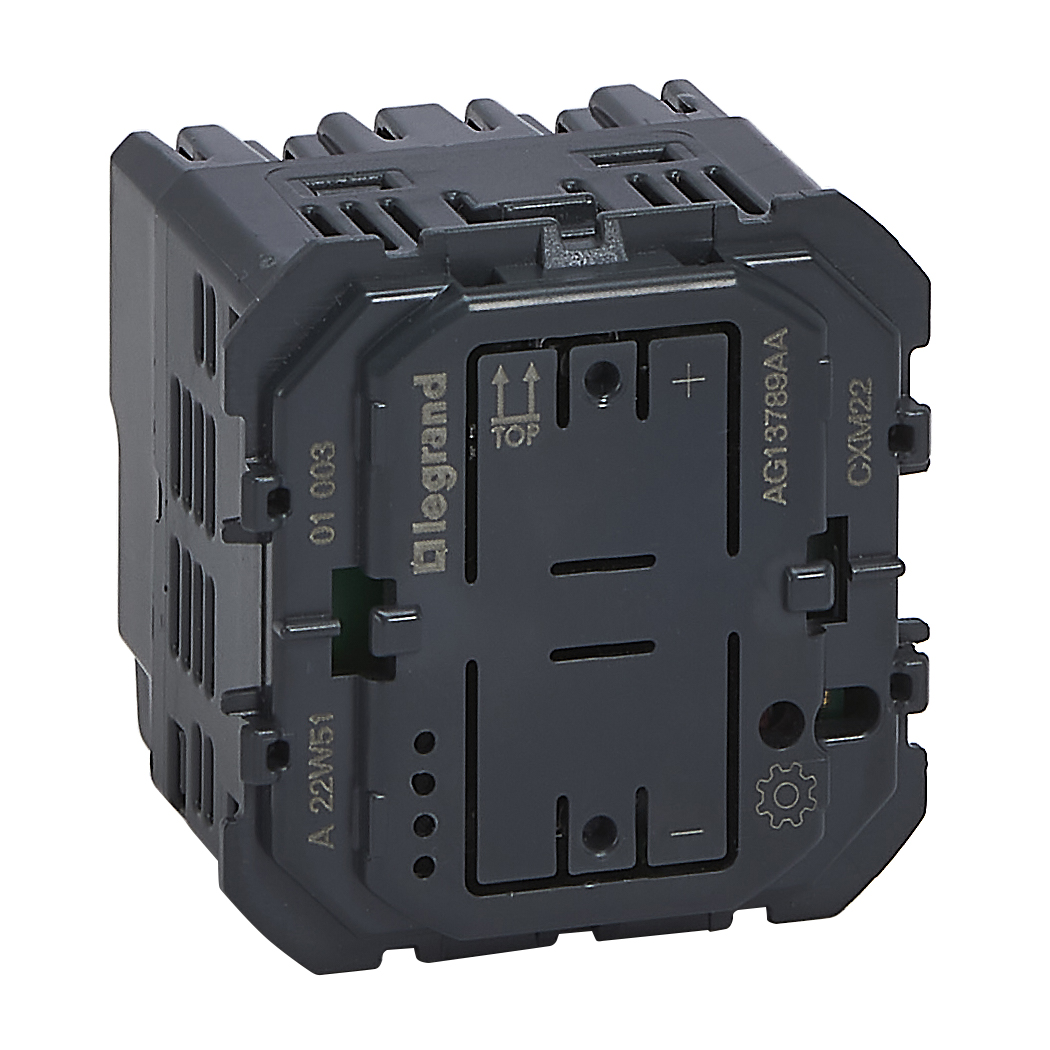

Legrand Céliane dimmer switch — 125W — 067083A
Reference: 067083A
Legrand reference 067083A identifies this dimmer switch in the Céliane range. Configuration: 125W.
- Range
- Céliane
- Rated voltage (min/max)
- 110-230V
- IK impact rating
- IK04
Build your quotationTailored quotation
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Legrand reference 067083A identifies this dimmer switch in the Céliane range. Configuration: 125W.
Reference characteristics: Rated voltage (min/max): 110-230V; IK impact rating: IK04; Colour: Other; Material: Plastic; Mounting method: Flush-mounted; Material grade: Thermoplastic.
When specifying wiring accessories, check function, module or gang count and mounting method. Combine mechanisms, supports and finishes that are compatible with the selected range.
For a MWB TRADING quotation, state reference 067083A, quantities and delivery country. Packaging and associated accessories can be specified in your quotation.
Applications
- Switches & sockets
For a tailored quotation
When specifying wiring accessories, check function, module or gang count and mounting method. Combine mechanisms, supports and finishes that are compatible with the selected range.
Contact our team ↗Specifications
| Brand | Legrand |
|---|---|
| Reference | 067083A |
| Range | Céliane |
| Rated voltage (min/max) | 110-230V |
| IK impact rating | IK04 |
| Colour | Other |
| Material | Plastic |
| Mounting method | Flush-mounted |
| EAN/GTIN | 3414972365437 |
| Material grade | Thermoplastic |
| Halogen-free | Yes |
| Transparent | No |
| Suitable IP protection rating | IP20 |
| Frequency (min/max) | 50-60Hz |
| Connection type | Screw terminal |
| Cable cross-section (min/max) | 1.5-2.5mm² |
| Device width | 45mm |
| Device height | 45mm |
| Device depth | 41mm |
| Minimum back-box depth | 40mm |
| Apple HomeKit compatible | No |
| Google Assistant compatible | No |
| Amazon Alexa compatible | No |
| IFTTT compatible | No |
| Recess depth | 33mm |
| Operating/installation temperature (min/max) | 5-35°C |
| Storage temperature (min/max) | 0-45°C |
| Voltage type | AC |
