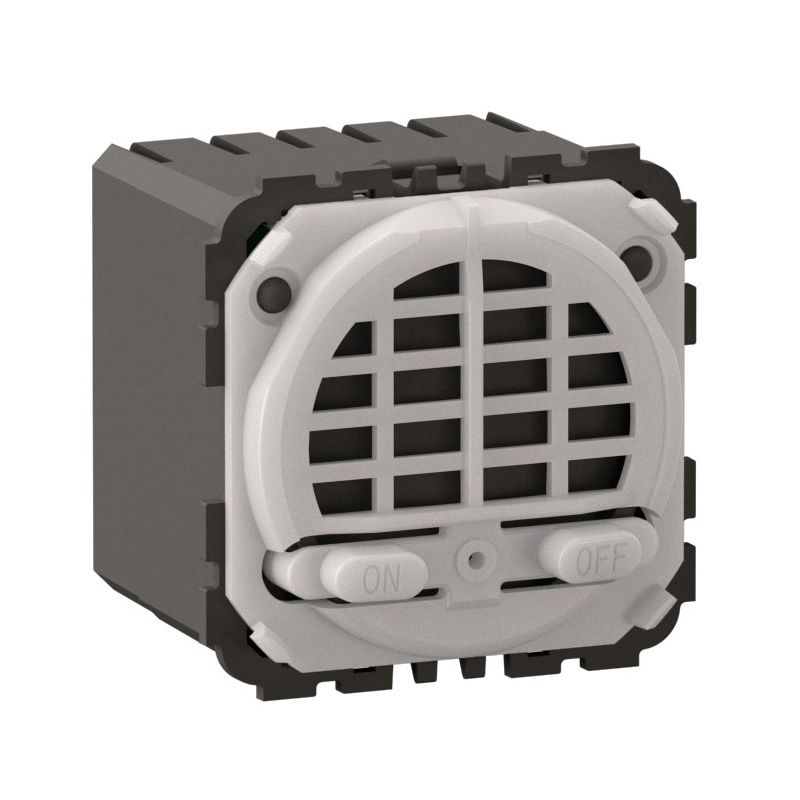

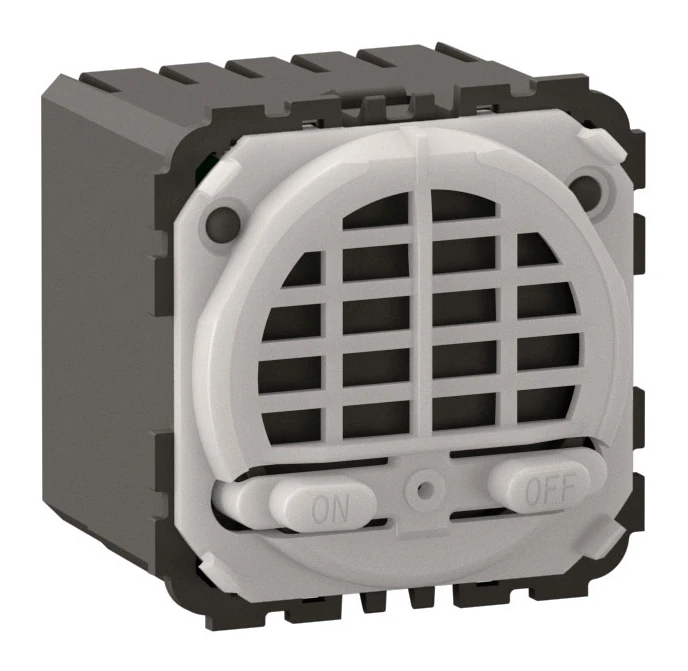

Official image for reference CM0202.
Manufacturer reference
Legrand Céliane doorbell — 2 modules, IP20 — CM0202
Reference: CM0202
Legrand reference CM0202 identifies this doorbell in the Céliane range. Configuration: 2 modules, IP20.
- Range
- Céliane
- Rated voltage (min/max)
- 8-12V
- Width in modules
- 2
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Legrand reference CM0202 identifies this doorbell in the Céliane range. Configuration: 2 modules, IP20.
Reference characteristics: Rated voltage (min/max): 8-12V; Width in modules: 2; Number of modules: 2; Width: 45mm; Height: 45mm; Depth: 43.5mm; IP protection rating: IP20.
Check connection method, dimensions and compatibility with associated equipment before ordering. Specify the exact reference and installation requirements to prepare a consistent supply package.
For a MWB TRADING quotation, state reference CM0202, quantities and delivery country. Packaging and associated accessories can be specified in your quotation.
Applications
- Wiring accessories & connections
For a tailored quotation
Check connection method, dimensions and compatibility with associated equipment before ordering. Specify the exact reference and installation requirements to prepare a consistent supply package.
Contact our team ↗Specifications
| Brand | Legrand |
|---|---|
| Reference | CM0202 |
| Range | Céliane |
| Rated voltage (min/max) | 8-12V |
| Width in modules | 2 |
| Number of modules | 2 |
| Width | 45mm |
| Height | 45mm |
| Depth | 43.5mm |
| IP protection rating | IP20 |
| IK impact rating | IK04 |
| EAN/GTIN | 3414972439718 |
| Housing colour | Other |
| Housing material | Plastic |
| Connection type | Screw terminal |
| Operating/installation temperature (min/max) | -5-35°C |
| Storage temperature (min/max) | -10-70°C |
| Frequency (min/max) | 50-60Hz |
| Antimicrobial treatment | No |
| Terminal capacity (min/max) | 1.5-1.5mm² |
| Connected device | No |
