Legrand CTX³ contactor, 3P 100A, 2 NO + 2 NC, 48V DC coil — 416223
Reference: 416223

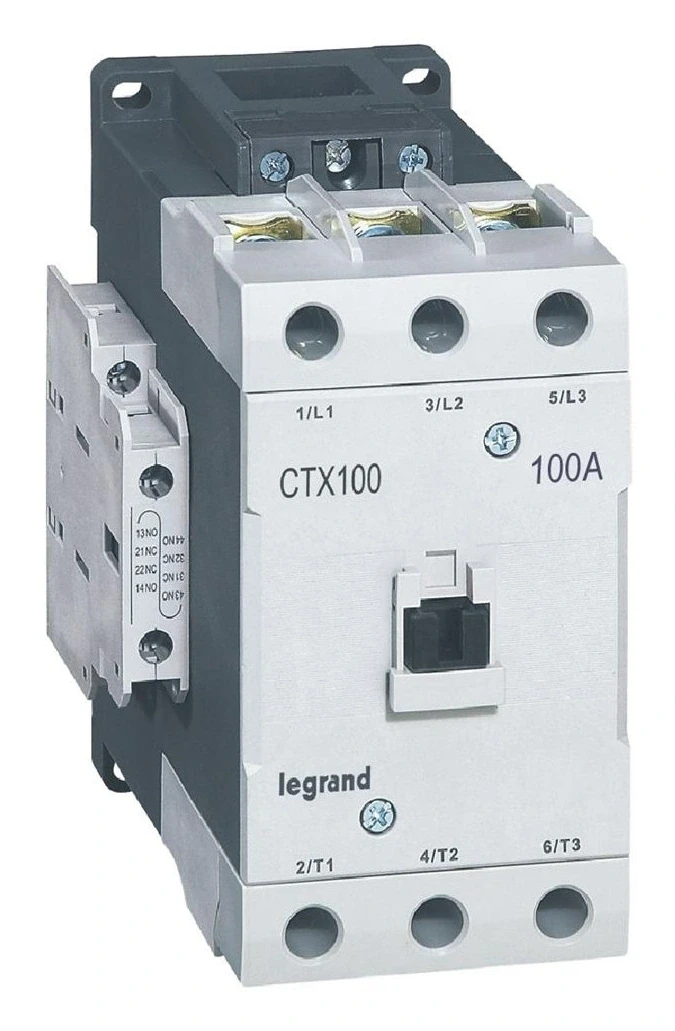

Representative image of the range.
At a glance
CTX³ contactor 416223 has three main normally open contacts and two auxiliary contacts of each type, normally open and normally closed. Its DC control supply operates from 40.8V to 52.8V.
- EAN
- 3414970402301
- Rated DC control supply voltage (min/max)
- 40.8-52.8 V
- Control voltage type
- DC
- Main normally open contacts
- 3
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
CTX³ contactor 416223 has three main normally open contacts and two auxiliary contacts of each type, normally open and normally closed. Its DC control supply operates from 40.8V to 52.8V.
Reference characteristics: Rated DC control supply voltage (min/max): 40.8-52.8 V; Control voltage type: DC; Main normally open contacts: 3; Main circuit connection: Cable clamp; Rated operating current AC-1 at 400 V: 160 A; Rated operating current AC-3 at 400 V: 105 A; Rated operating power AC-3 at 400 V: 55 kW.
For motor control or protection, specify load and control-circuit requirements. Check contacts, mounting method and compatibility with the associated contactor, relay or protective device.
For your enquiry to MWB TRADING, specify reference 416223, quantities and delivery country.
Applications
- Motor control & protection
For a tailored quotation
For motor control or protection, specify load and control-circuit requirements. Check contacts, mounting method and compatibility with the associated contactor, relay or protective device.
Contact our team ↗Specifications
| Brand | Legrand |
|---|---|
| Reference | 416223 |
| EAN | 3414970402301 |
| Rated DC control supply voltage (min/max) | 40.8-52.8 V |
| Control voltage type | DC |
| Main normally open contacts | 3 |
| Main circuit connection | Cable clamp |
| Rated operating current AC-1 at 400 V | 160 A |
| Rated operating current AC-3 at 400 V | 105 A |
| Rated operating power AC-3 at 400 V | 55 kW |
| Rated operating current AC-4 at 400 V | 75 A |
| Rated operating power AC-4 at 400 V | 37 kW |
| Normally open auxiliary contacts | 2 |
| Normally closed auxiliary contacts | 2 |
| Suitable for rail mounting | Yes |
