Legrand CTX³ contactor, 3P 75A, 2 NO + 2 NC, 48V DC coil — 416183
Reference: 416183

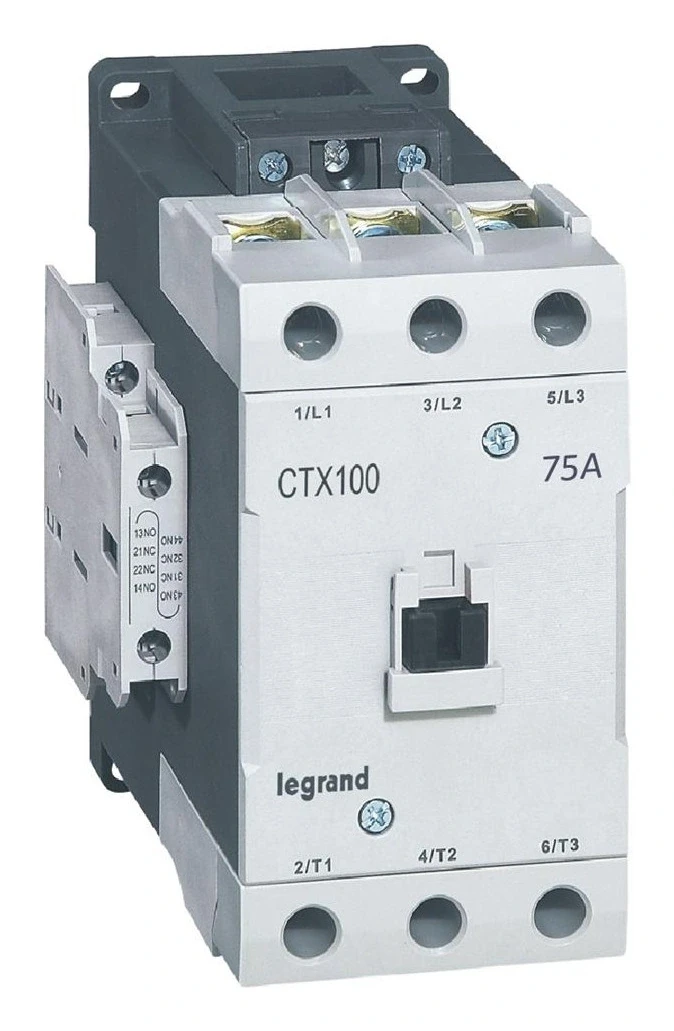

Representative image of the range.
At a glance
CTX³ contactor 416183 combines three main normally open contacts with two NO and two NC auxiliary contacts. The listed AC-3 ratings are 75A and 37kW at 400V, with 48V DC control.
- EAN
- 3414970401502
- Rated DC control supply voltage (min/max)
- 40.8-52.8 V
- Control voltage type
- DC
- Main normally open contacts
- 3
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
CTX³ contactor 416183 combines three main normally open contacts with two NO and two NC auxiliary contacts. The listed AC-3 ratings are 75A and 37kW at 400V, with 48V DC control.
Reference characteristics: Rated DC control supply voltage (min/max): 40.8-52.8 V; Control voltage type: DC; Main normally open contacts: 3; Main circuit connection: Cable clamp; Rated operating current AC-1 at 400 V: 110 A; Rated operating current AC-3 at 400 V: 75 A; Rated operating power AC-3 at 400 V: 37 kW.
For motor control or protection, specify load and control-circuit requirements. Check contacts, mounting method and compatibility with the associated contactor, relay or protective device.
For your enquiry to MWB TRADING, specify reference 416183, quantities and delivery country.
Applications
- Motor control & protection
For a tailored quotation
For motor control or protection, specify load and control-circuit requirements. Check contacts, mounting method and compatibility with the associated contactor, relay or protective device.
Contact our team ↗Specifications
| Brand | Legrand |
|---|---|
| Reference | 416183 |
| EAN | 3414970401502 |
| Rated DC control supply voltage (min/max) | 40.8-52.8 V |
| Control voltage type | DC |
| Main normally open contacts | 3 |
| Main circuit connection | Cable clamp |
| Rated operating current AC-1 at 400 V | 110 A |
| Rated operating current AC-3 at 400 V | 75 A |
| Rated operating power AC-3 at 400 V | 37 kW |
| Rated operating current AC-4 at 400 V | 52 A |
| Rated operating power AC-4 at 400 V | 25 kW |
| Normally open auxiliary contacts | 2 |
| Normally closed auxiliary contacts | 2 |
| Suitable for rail mounting | Yes |
