Legrand DPX³ 160 thermal-magnetic moulded-case circuit breaker — 40A, 3 poles, 50kA Icu at 400V, IP30 — 420122
Reference: 420122

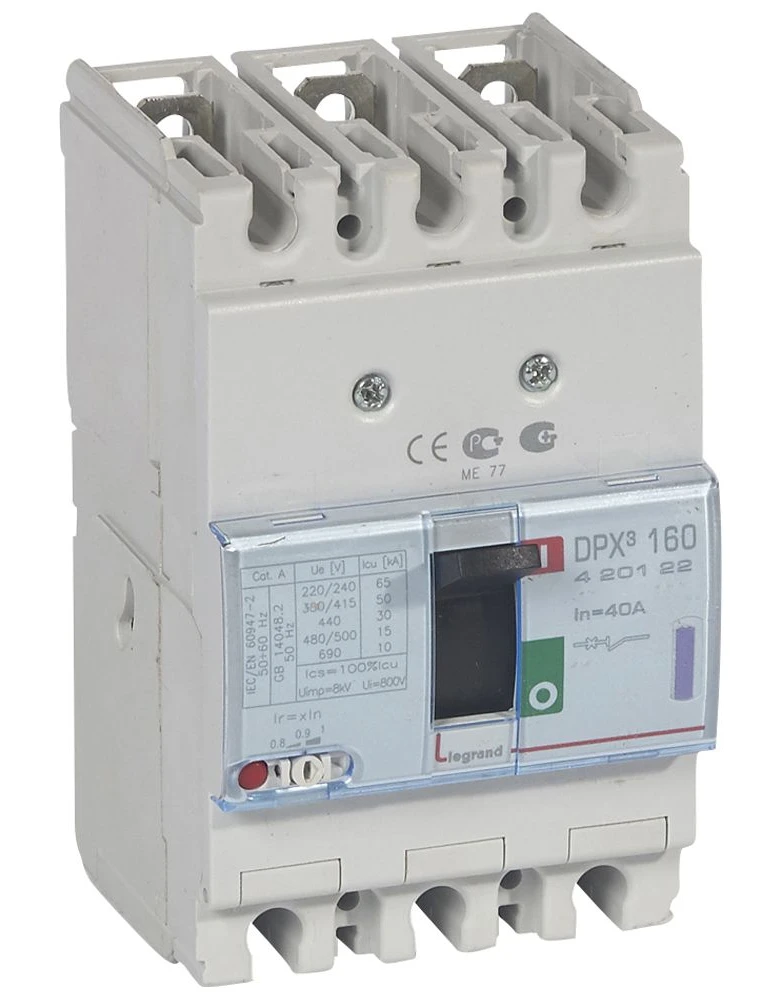

Manufacturer image associated with this reference.
At a glance
The Legrand 420122 is a thermal-magnetic moulded-case circuit breaker in the DPX³ 160 range. Configuration: 40A, 3 poles, 50kA Icu at 400V, IP30.
- Range
- DPX³
- Rated uninterrupted current (Iu)
- 40A
- Rated operational voltage Ue (min/max)
- 220-690V
- Number of poles
- 3
Build your quotationTailored quotation
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
The Legrand 420122 is a thermal-magnetic moulded-case circuit breaker in the DPX³ 160 range. Configuration: 40A, 3 poles, 50kA Icu at 400V, IP30.
Technical characteristics: Rated uninterrupted current (Iu): 40A; Rated operational voltage Ue (min/max): 220-690V; Number of poles: 3; Rated ultimate breaking capacity Icu at 400V, 50Hz: 50kA; IP protection rating: IP30; Overload trip current setting (min/max): 32-40A; Normally closed auxiliary contacts: 1; Built-in motor operator: No.
Selection of power protection equipment depends on the supply, loads and protection coordination. Check frame size, number of poles, trip unit and auxiliary compatibility before ordering.
For a quotation, specify reference 420122, quantity and delivery country. MWB TRADING confirms availability and the accessories needed for your project.
Applications
- Power circuit breakers
For a tailored quotation
Selection of power protection equipment depends on the supply, loads and protection coordination. Check frame size, number of poles, trip unit and auxiliary compatibility before ordering.
Contact our team ↗Specifications
| Brand | Legrand |
|---|---|
| Reference | 420122 |
| Range | DPX³ |
| Rated uninterrupted current (Iu) | 40A |
| Rated operational voltage Ue (min/max) | 220-690V |
| Number of poles | 3 |
| Rated ultimate breaking capacity Icu at 400V, 50Hz | 50kA |
| IP protection rating | IP30 |
| Overload trip current setting (min/max) | 32-40A |
| Normally closed auxiliary contacts | 1 |
| Built-in motor operator | No |
| Optional motor operator | Yes |
| EAN/GTIN | 3245064201223 |
