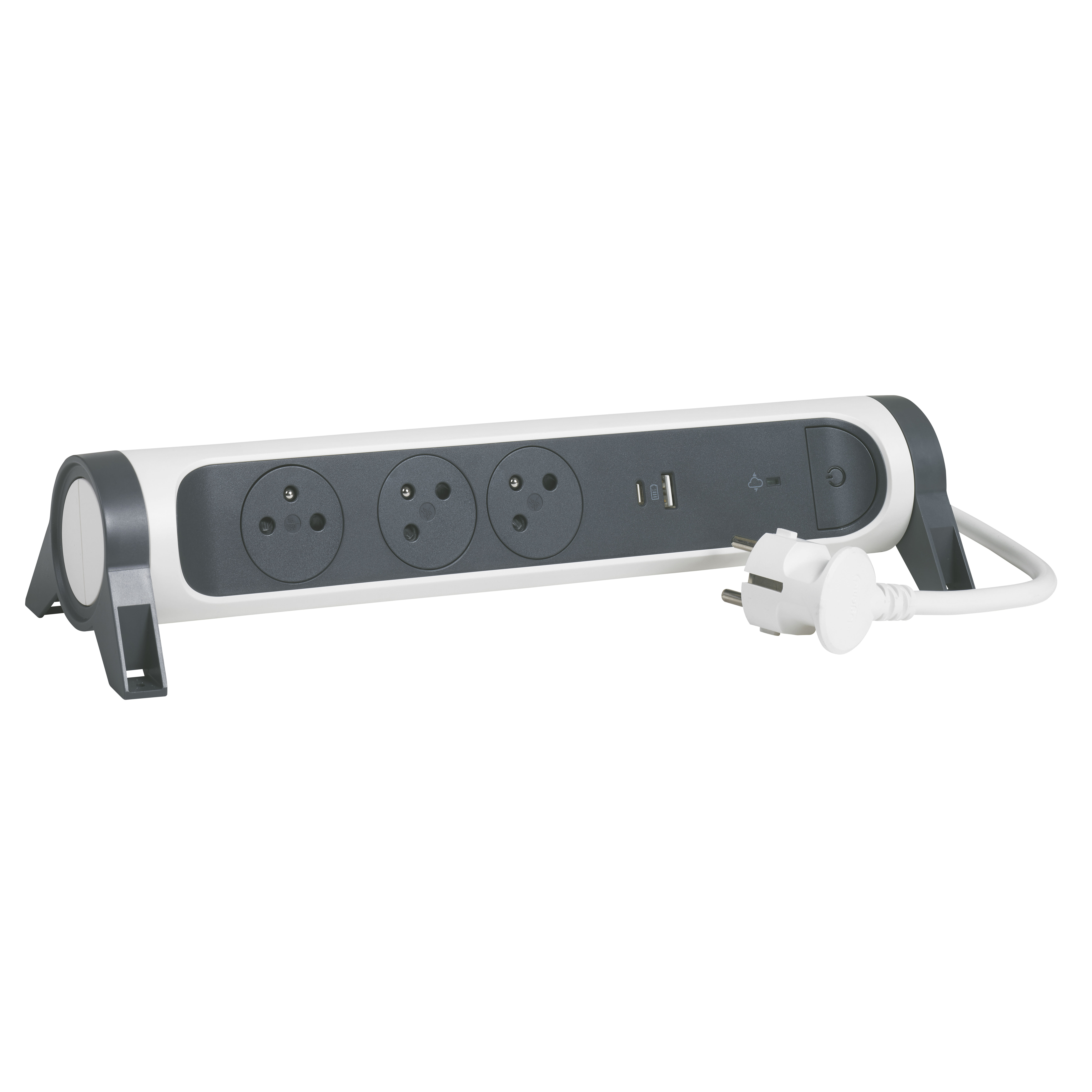

Official image for reference 049417.
Manufacturer reference
Legrand extension lead — IP20, White — 049417
Reference: 049417
Legrand reference 049417 identifies this extension lead. Configuration: IP20, White.
- Rated voltage (min/max)
- 220-250V
- Width
- 100mm
- Height
- 65mm
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Legrand reference 049417 identifies this extension lead. Configuration: IP20, White.
Reference characteristics: Rated voltage (min/max): 220-250V; Width: 100mm; Height: 65mm; Depth: 338mm; IP protection rating: IP20; IK impact rating: IK04; Colour: White.
Match this reference to the wiring diagram, supply voltage and required number of poles. Check rated current, tripping characteristic, residual current sensitivity and breaking capacity as applicable to the device.
For a MWB TRADING quotation, state reference 049417, quantities and delivery country. Packaging and associated accessories can be specified in your quotation.
Applications
- Protection & distribution
For a tailored quotation
Match this reference to the wiring diagram, supply voltage and required number of poles. Check rated current, tripping characteristic, residual current sensitivity and breaking capacity as applicable to the device.
Contact our team ↗Specifications
| Brand | Legrand |
|---|---|
| Reference | 049417 |
| Rated voltage (min/max) | 220-250V |
| Width | 100mm |
| Height | 65mm |
| Depth | 338mm |
| IP protection rating | IP20 |
| IK impact rating | IK04 |
| Colour | White |
| Material | Plastic |
| Mounting method | Surface-mounted |
| EAN/GTIN | 3414971942561 |
| Material grade | Thermoplastic |
| Halogen-free | Yes |
| Antimicrobial treatment | No |
| Surface finish | Matt |
| Equivalent RAL number | 9003 |
| Transparent | No |
| Operating/installation temperature (min/max) | -5-35°C |
| Apple HomeKit compatible | No |
| Google Assistant compatible | No |
| Amazon Alexa compatible | No |
| IFTTT compatible | No |
| Storage temperature (min/max) | -20-70°C |
| Voltage type | AC/DC |
| Connected device | No |
