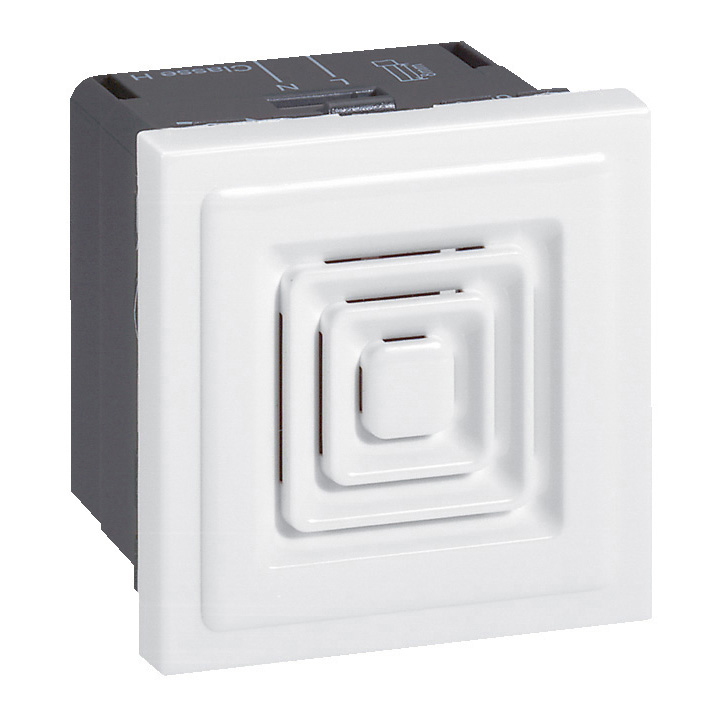

Official photograph for this Legrand reference.
Manufacturer reference
Legrand Mosaic doorbell — 2 modules, IP41 — 076642
Reference: 076642
Legrand reference 076642 identifies this doorbell in the Mosaic range. Configuration: 2 modules, IP41.
- Range
- Mosaic
- Rated voltage (min/max)
- 12-48V
- Number of modules
- 2
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Legrand reference 076642 identifies this doorbell in the Mosaic range. Configuration: 2 modules, IP41.
Reference characteristics: Rated voltage (min/max): 12-48V; Number of modules: 2; Width: 45mm; Height: 45mm; Depth: 41mm; IP protection rating: IP41; IK impact rating: IK05.
Check connection method, dimensions and compatibility with associated equipment before ordering. Specify the exact reference and installation requirements to prepare a consistent supply package.
For a MWB TRADING quotation, state reference 076642, quantities and delivery country. Packaging and associated accessories can be specified in your quotation.
Applications
- Wiring accessories & connections
For a tailored quotation
Check connection method, dimensions and compatibility with associated equipment before ordering. Specify the exact reference and installation requirements to prepare a consistent supply package.
Contact our team ↗Specifications
| Brand | Legrand |
|---|---|
| Reference | 076642 |
| Range | Mosaic |
| Rated voltage (min/max) | 12-48V |
| Number of modules | 2 |
| Width | 45mm |
| Height | 45mm |
| Depth | 41mm |
| IP protection rating | IP41 |
| IK impact rating | IK05 |
| EAN/GTIN | 3245060766429 |
| Housing colour | White |
| Housing material | Plastic |
| Connection type | Screw terminal |
| Operating/installation temperature (min/max) | -5-35°C |
| Storage temperature (min/max) | -10-70°C |
| Terminal capacity (min/max) | 2.5-2.5mm² |
| Connected device | No |
