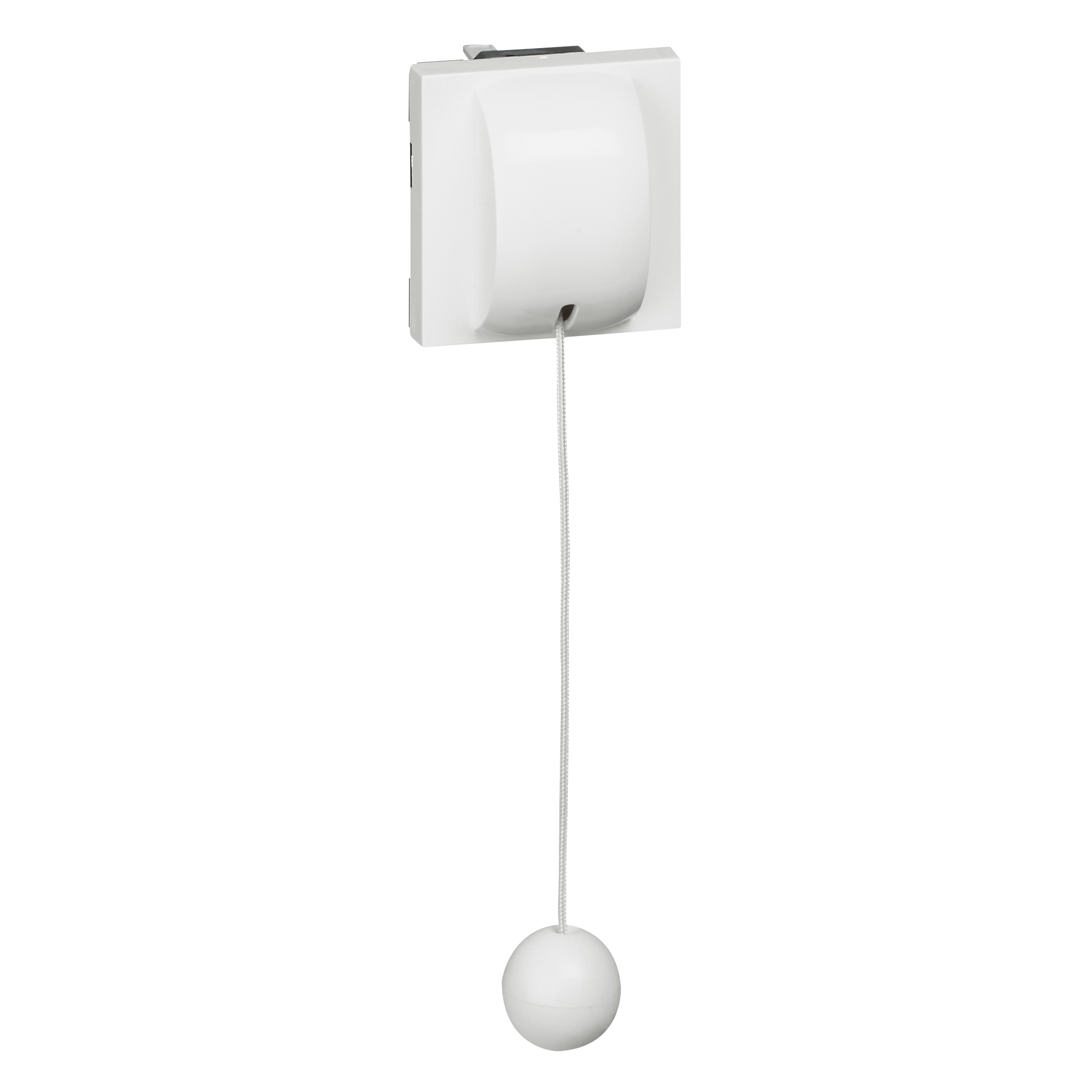

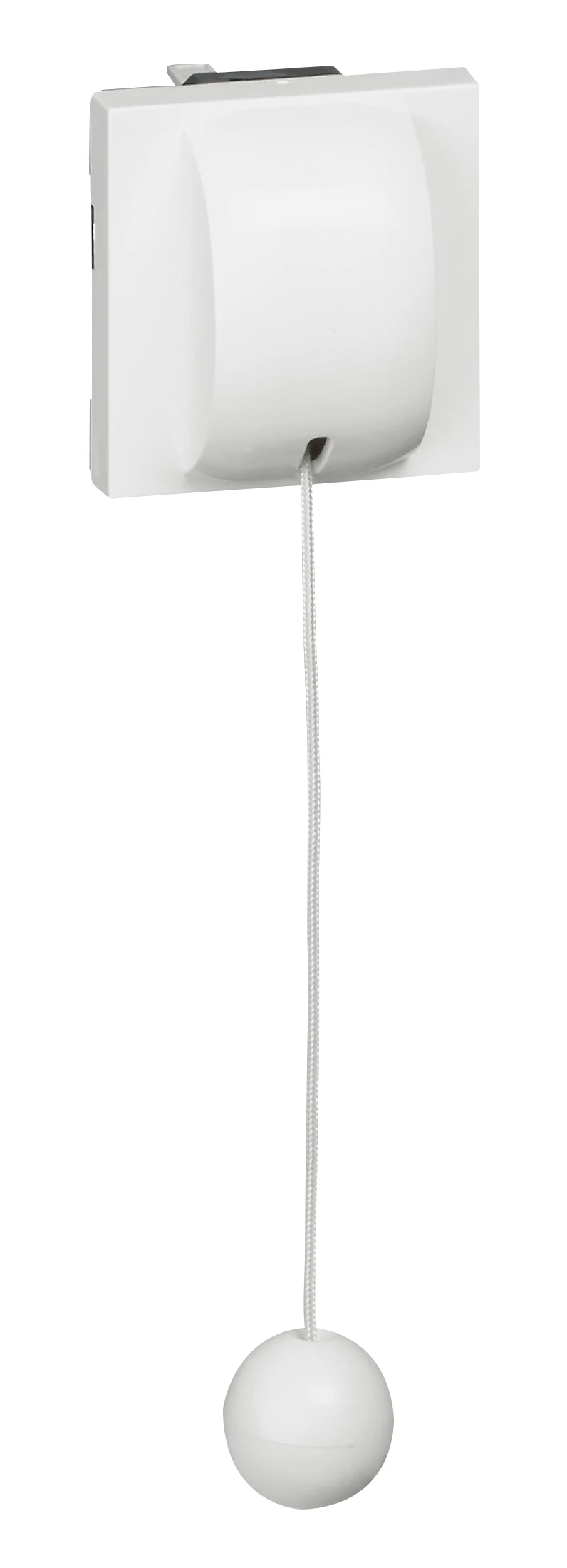

Official image for reference 077044.
Manufacturer reference
Legrand Mosaic push-button — 6A, 250V, 2 poles — 077044
Reference: 077044
Legrand reference 077044 identifies this push-button in the Mosaic range. Configuration: 6A, 250V, 2 poles, 2 modules, White.
- Range
- Mosaic
- Rated current (In)
- 6A
- Rated voltage
- 250V
Build your quotationTailored quotation
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Legrand reference 077044 identifies this push-button in the Mosaic range. Configuration: 6A, 250V, 2 poles, 2 modules, White.
Reference characteristics: Rated current (In): 6A; Rated voltage: 250V; Number of poles: 2; Number of modules: 2; IK impact rating: IK04; Colour: White; Material: Plastic.
When specifying wiring accessories, check function, module or gang count and mounting method. Combine mechanisms, supports and finishes that are compatible with the selected range.
For a MWB TRADING quotation, state reference 077044, quantities and delivery country. Packaging and associated accessories can be specified in your quotation.
Applications
- Switches & sockets
For a tailored quotation
When specifying wiring accessories, check function, module or gang count and mounting method. Combine mechanisms, supports and finishes that are compatible with the selected range.
Contact our team ↗Specifications
| Brand | Legrand |
|---|---|
| Reference | 077044 |
| Range | Mosaic |
| Rated current (In) | 6A |
| Rated voltage | 250V |
| Number of poles | 2 |
| Number of modules | 2 |
| IK impact rating | IK04 |
| Colour | White |
| Material | Plastic |
| EAN/GTIN | 3245060770440 |
| Connection type | Automatic terminal |
| Material grade | Thermoplastic |
| Halogen-free | Yes |
| Antimicrobial treatment | No |
| Surface finish | Glossy |
| Equivalent RAL number | 9003 |
| Transparent | No |
| Suitable IP protection rating | IP31 |
| Device width | 45mm |
| Device height | 45mm |
| Device depth | 35.6mm |
| Minimum back-box depth | 40mm |
| Apple HomeKit compatible | No |
| Google Assistant compatible | No |
| Amazon Alexa compatible | No |
| IFTTT compatible | No |
| Recess depth | 22.6mm |
