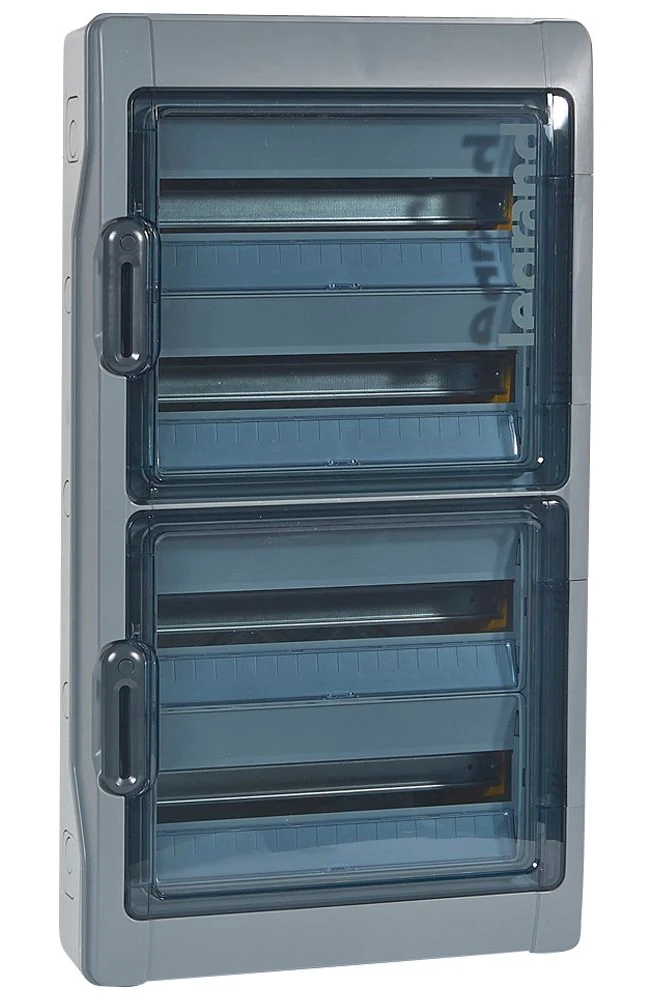

Legrand Plexo³ enclosure — H 822mm x W 448mm x D 161mm, 4 rows, 18 modules, IP65 — 414038
Reference: 414038
Manufacturer image associated with this reference.
At a glance
The Legrand 414038 is an enclosure in the Plexo³ range. Configuration: H 822mm x W 448mm x D 161mm, 4 rows, 18 modules, IP65, Grey.
- Range
- Plexo
- Number of rows
- 4
- Width in modules
- 18
- Height
- 822mm
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
The Legrand 414038 is an enclosure in the Plexo³ range. Configuration: H 822mm x W 448mm x D 161mm, 4 rows, 18 modules, IP65, Grey.
Technical characteristics: Number of rows: 4; Width in modules: 18; Height: 822mm; Width: 448mm; Depth: 161mm; IP protection rating: IP65; IK impact rating: IK09; Colour: Grey.
Select the enclosure for the required dimensions, mounting method and installed devices. For unequipped enclosures, check the documentation for required doors, covers and protective components; the protection rating depends on the manufacturer-specified assembly conditions.
For a quotation, specify reference 414038, quantity and delivery country. MWB TRADING confirms availability and the accessories needed for your project.
Applications
- Enclosures & switchboards
For a tailored quotation
Select the enclosure for the required dimensions, mounting method and installed devices. For unequipped enclosures, check the documentation for required doors, covers and protective components; the protection rating depends on the manufacturer-specified assembly conditions.
Contact our team ↗Specifications
| Brand | Legrand |
|---|---|
| Reference | 414038 |
| Range | Plexo |
| Number of rows | 4 |
| Width in modules | 18 |
| Height | 822mm |
| Width | 448mm |
| Depth | 161mm |
| IP protection rating | IP65 |
| IK impact rating | IK09 |
| Colour | Grey |
| Mounting method | Surface-mounted |
| Cover type | Door |
| Transparent cover/door | Yes |
| With lock | Yes |
| Housing material | Plastic |
| Recess depth | 157mm |
| Recess height | 818mm |
| Recess width | 444mm |
| Internal depth | 89mm |
| Earth terminal | No |
| Neutral terminal | No |
| DIN rail | Yes |
| With mounting frame/support | No |
| Surface mounting possible | Yes |
| EMC design | No |
| RAL number | 7046 |
| EAN/GTIN | 3245064140386 |
