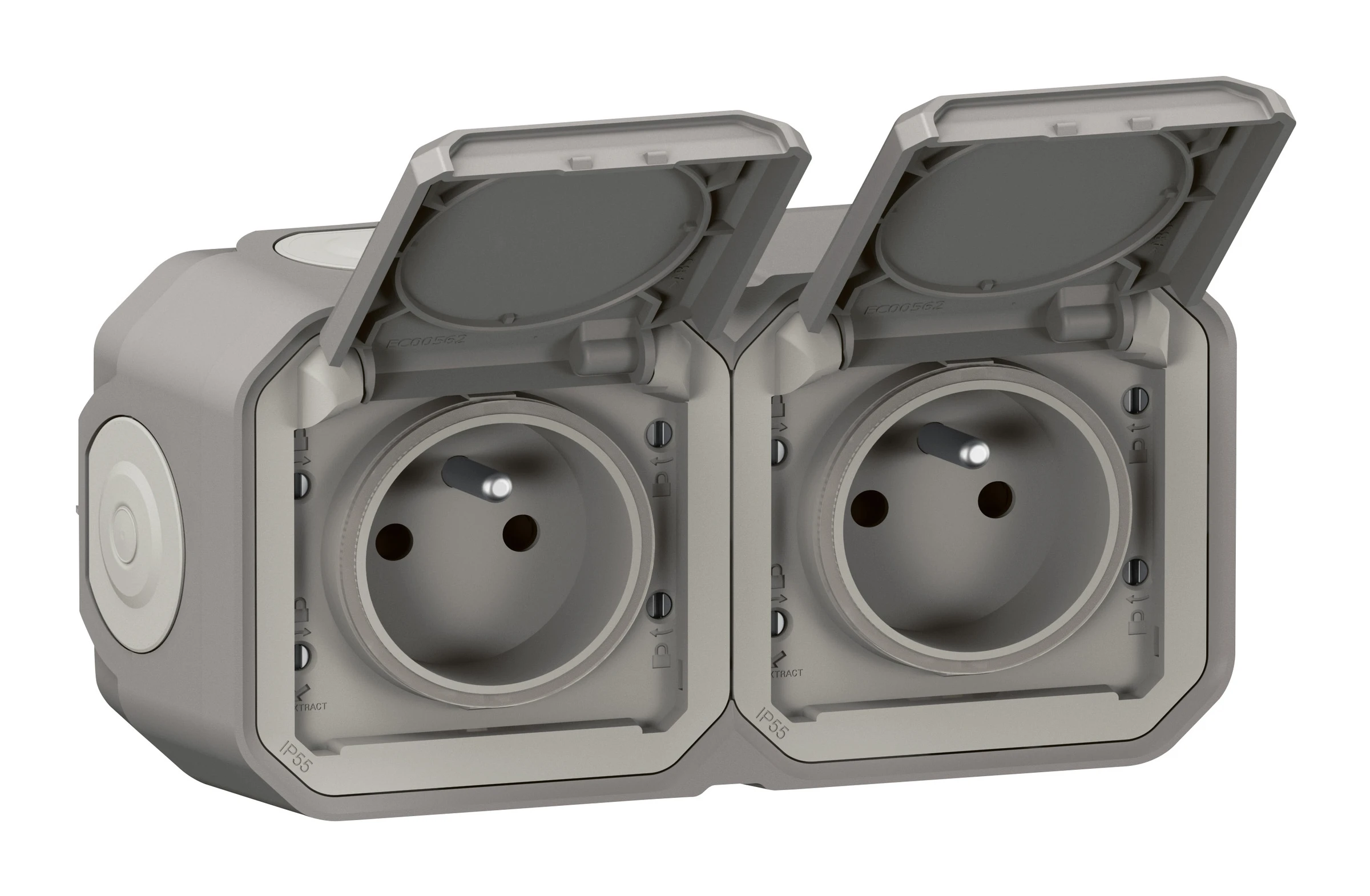

Legrand Plexo double socket outlet — 16A, 250V, Grey — 069768L
Reference: 069768L
Manufacturer image associated with this reference.
At a glance
The Legrand 069768L is a double socket outlet in the Plexo range. Configuration: 16A, 250V, Grey.
- Range
- Plexo
- Rated current
- 16A
- Rated voltage
- 250V
- IK impact rating
- IK08
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
The Legrand 069768L is a double socket outlet in the Plexo range. Configuration: 16A, 250V, Grey.
Technical characteristics: Rated current: 16A; Rated voltage: 250V; IK impact rating: IK08; Colour: Grey; Material: Plastic; Mounting method: Surface-mounted; Simultaneous neutral switching: No; Number of socket outlets: 2.
For wiring accessories exposed to moisture or dust, check the IP rating and mounting conditions of the complete assembly. Specify the reference, cable entries and compatible accessories to suit the installation environment.
For a quotation, specify reference 069768L, quantity and delivery country. MWB TRADING confirms availability and the accessories needed for your project.
Applications
- Weatherproof wiring accessories
For a tailored quotation
For wiring accessories exposed to moisture or dust, check the IP rating and mounting conditions of the complete assembly. Specify the reference, cable entries and compatible accessories to suit the installation environment.
Contact our team ↗Specifications
| Brand | Legrand |
|---|---|
| Reference | 069768L |
| Range | Plexo |
| Rated current | 16A |
| Rated voltage | 250V |
| IK impact rating | IK08 |
| Colour | Grey |
| Material | Plastic |
| Mounting method | Surface-mounted |
| Simultaneous neutral switching | No |
| Number of socket outlets | 2 |
| Number of modules | 4 |
| Connection type | Automatic terminal |
| With protective cover | Yes |
| Equivalent RAL number | 7046 |
| Transparent | No |
| Material grade | Thermoplastic |
| Halogen-free | Yes |
| Surface finish | Matt |
| Antimicrobial treatment | No |
| Frequency (min/max) | 50-60Hz |
| Suitable IP protection rating | IP55 |
| Device width | 141.5mm |
| Device height | 70.5mm |
| Device depth | 47.5mm |
| Apple HomeKit compatible | No |
| Amazon Alexa compatible | No |
| EAN/GTIN | 3414971882614 |
