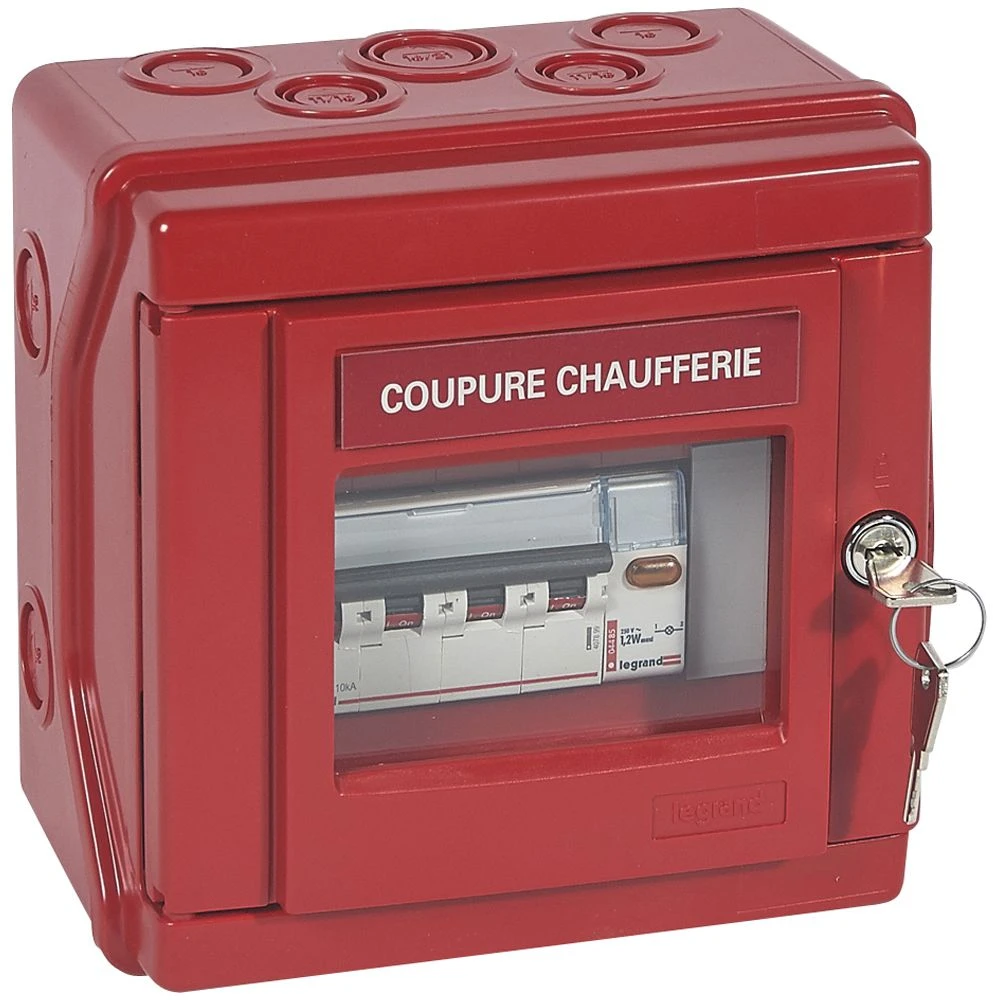

Legrand Plexo enclosure — H 180mm x W 172mm x D 115mm, 1 row, IP55, Red — 038090
Reference: 038090
Manufacturer image associated with this reference.
At a glance
The Legrand 038090 is an enclosure in the Plexo range. Configuration: H 180mm x W 172mm x D 115mm, 1 row, IP55, Red.
- Range
- Plexo
- Number of rows
- 1
- Height
- 180mm
- Width
- 172mm
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
The Legrand 038090 is an enclosure in the Plexo range. Configuration: H 180mm x W 172mm x D 115mm, 1 row, IP55, Red.
Technical characteristics: Number of rows: 1; Height: 180mm; Width: 172mm; Depth: 115mm; IP protection rating: IP55; IK impact rating: IK07; Colour: Red; Mounting method: Surface-mounted.
Select the enclosure for the required dimensions, mounting method and installed devices. For unequipped enclosures, check the documentation for required doors, covers and protective components; the protection rating depends on the manufacturer-specified assembly conditions.
For a quotation, specify reference 038090, quantity and delivery country. MWB TRADING confirms availability and the accessories needed for your project.
Applications
- Enclosures & switchboards
For a tailored quotation
Select the enclosure for the required dimensions, mounting method and installed devices. For unequipped enclosures, check the documentation for required doors, covers and protective components; the protection rating depends on the manufacturer-specified assembly conditions.
Contact our team ↗Specifications
| Brand | Legrand |
|---|---|
| Reference | 038090 |
| Range | Plexo |
| Number of rows | 1 |
| Height | 180mm |
| Width | 172mm |
| Depth | 115mm |
| IP protection rating | IP55 |
| IK impact rating | IK07 |
| Colour | Red |
| Mounting method | Surface-mounted |
| Housing material | Plastic |
| Surface mounting possible | Yes |
| Cover type | Door |
| RAL number | 3000 |
| Enclosure capacity (modules) | 6 |
| Operating/installation temperature (min/max) | -10-+55°C |
| Storage temperature (min/max) | -10-+55°C |
| Rated voltage (min/max) | 230-230V |
| EAN/GTIN | 3245060380908 |
