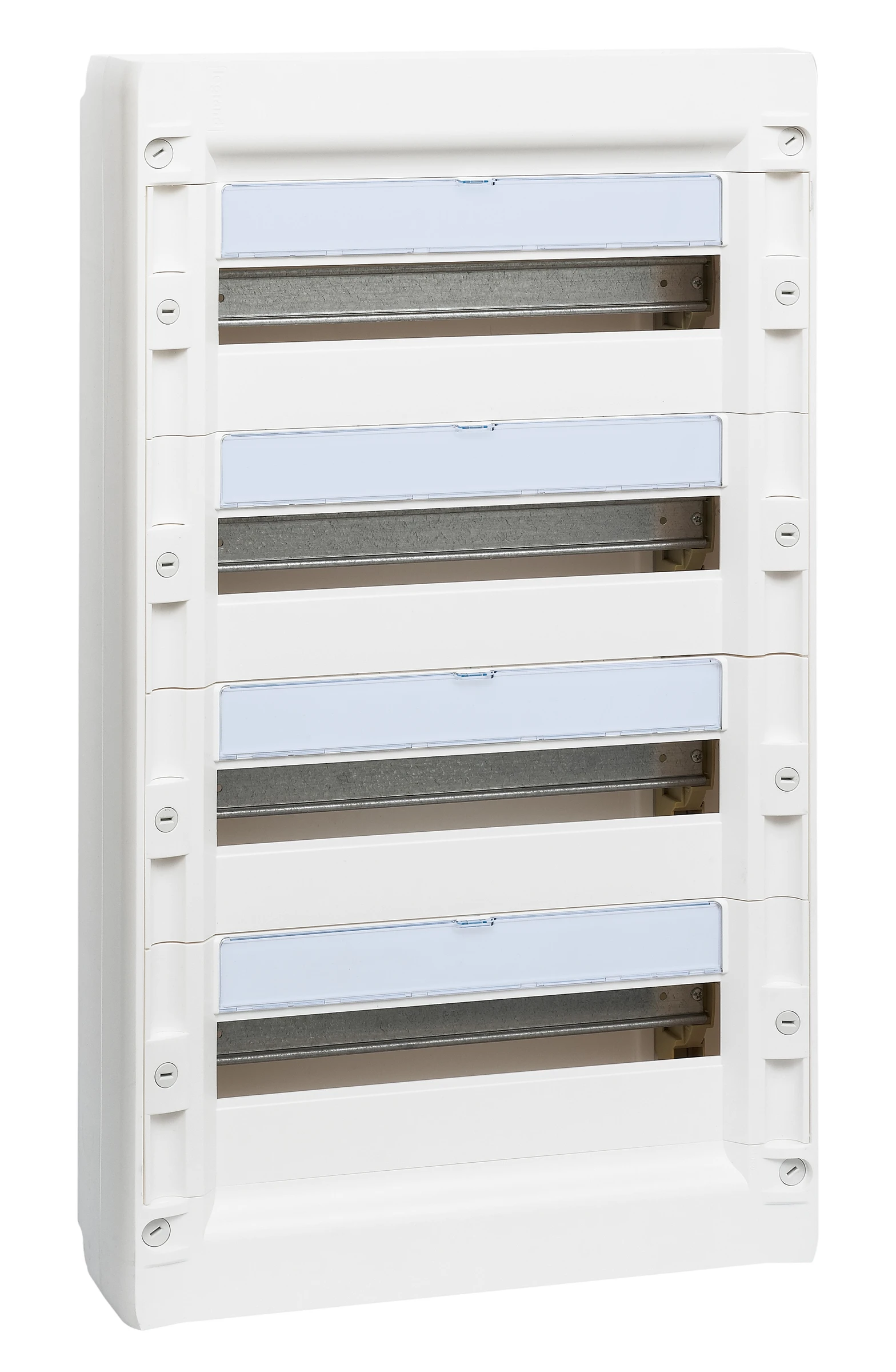

Legrand XL³ 125 enclosure — H 750mm x W 450mm x D 128mm, 4 rows, 18 modules, IP30 — 401614
Reference: 401614
Manufacturer image associated with this reference.
At a glance
The Legrand 401614 is an enclosure in the XL³ 125 range. Configuration: H 750mm x W 450mm x D 128mm, 4 rows, 18 modules, IP30, White.
- Range
- XL³
- Number of rows
- 4
- Width in modules
- 18
- Height
- 750mm
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
The Legrand 401614 is an enclosure in the XL³ 125 range. Configuration: H 750mm x W 450mm x D 128mm, 4 rows, 18 modules, IP30, White.
Technical characteristics: Number of rows: 4; Width in modules: 18; Height: 750mm; Width: 450mm; Depth: 128mm; IP protection rating: IP30; IK impact rating: IK08; Colour: White.
Select the enclosure for the required dimensions, mounting method and installed devices. For unequipped enclosures, check the documentation for required doors, covers and protective components; the protection rating depends on the manufacturer-specified assembly conditions.
For a quotation, specify reference 401614, quantity and delivery country. MWB TRADING confirms availability and the accessories needed for your project.
Applications
- Enclosures & switchboards
For a tailored quotation
Select the enclosure for the required dimensions, mounting method and installed devices. For unequipped enclosures, check the documentation for required doors, covers and protective components; the protection rating depends on the manufacturer-specified assembly conditions.
Contact our team ↗Specifications
| Brand | Legrand |
|---|---|
| Reference | 401614 |
| Range | XL³ |
| Number of rows | 4 |
| Width in modules | 18 |
| Height | 750mm |
| Width | 450mm |
| Depth | 128mm |
| IP protection rating | IP30 |
| IK impact rating | IK08 |
| Colour | White |
| Mounting method | Surface-mounted |
| Transparent cover/door | No |
| With lock | Yes |
| Housing material | Plastic |
| Recess depth | 124mm |
| Recess height | 746mm |
| Recess width | 446mm |
| Internal depth | 128mm |
| Earth terminal | Yes |
| Neutral terminal | No |
| DIN rail | Yes |
| With mounting frame/support | No |
| Surface mounting possible | Yes |
| EMC design | No |
| RAL number | 9003 |
| Enclosure capacity (modules) | 72 |
| EAN/GTIN | 3245064016148 |
