Modular timing relay RE22R1MLMR — 24…240 V AC/DC
Reference: RE22R1MLMR

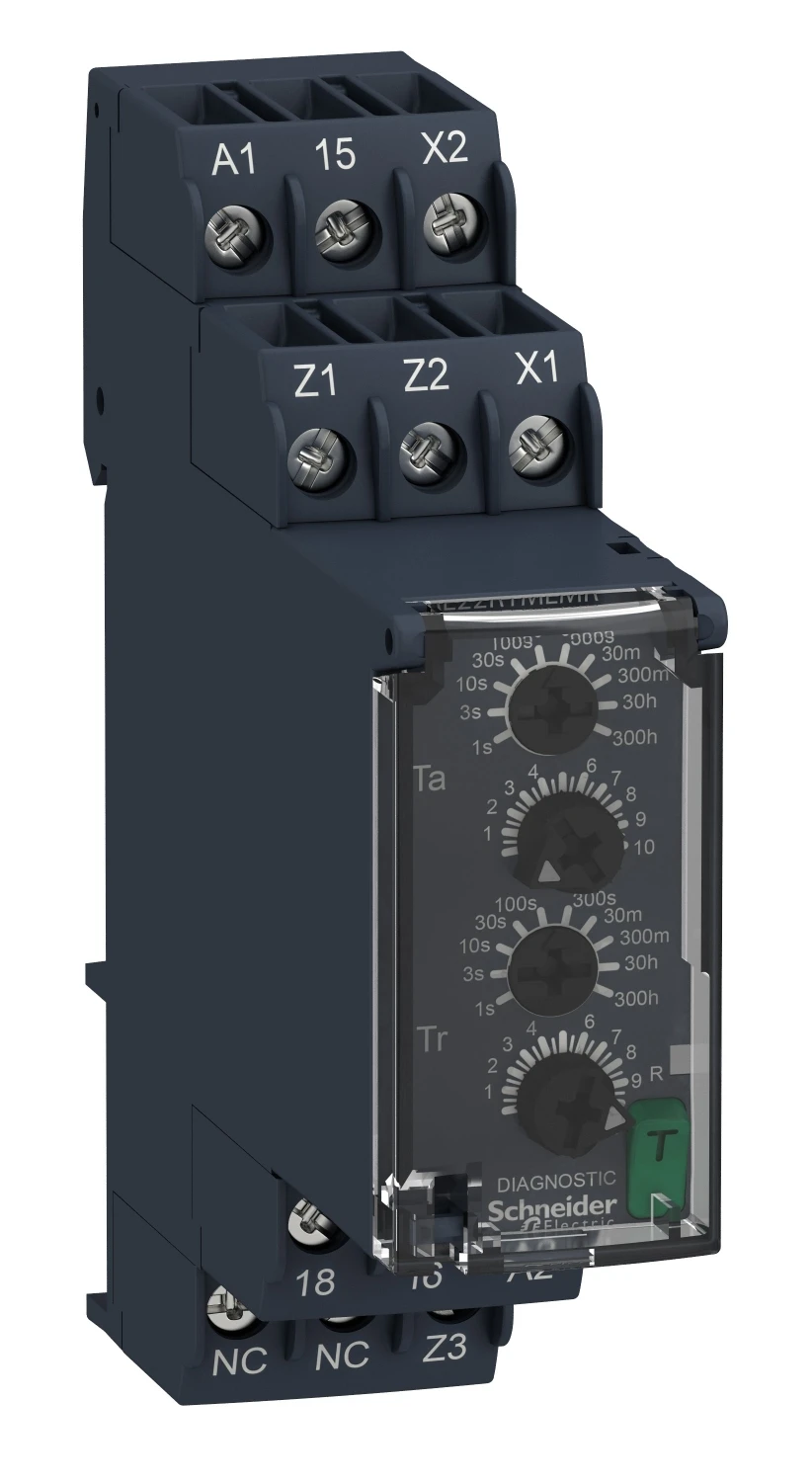

Official image associated by Schneider Electric with this reference.
At a glance
Schneider Electric RE22R1MLMR modular timing relay, Harmony Time range.
- Range
- Harmony Time
- Supply voltage
- 24...240 V AC/DC
- Output
- 1 CO
- Manufacturer function codes
- L, Li, Lt, Lit
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Schneider Electric RE22R1MLMR modular timing relay, Harmony Time range.
Supply voltage: 24...240 V AC/DC; Output: 1 CO; Manufacturer function codes: L, Li, Lt, Lit; Selectable timing ranges: 1 s / 3 s / 10 s / 30 s / 100 s / 300 s / 30 min / 300 min / 30 h / 300 h.
Timing and sequencing of machine, pump and control-panel circuits.
Select the timing function, time range and output type for the circuit. Function codes refer to the manufacturer timing diagrams; check permissible load and voltage before selection.
For an MWB TRADING quotation, specify RE22R1MLMR, quantity and destination country. Availability and packaging will be confirmed with the offer.
Applications
- Timing and sequencing of machine, pump and control-panel circuits.
For a tailored quotation
Select the timing function, time range and output type for the circuit. Function codes refer to the manufacturer timing diagrams; check permissible load and voltage before selection.
Contact our team ↗Specifications
| Brand | Schneider Electric |
|---|---|
| Reference | RE22R1MLMR |
| Range | Harmony Time |
| Supply voltage | 24...240 V AC/DC |
| Output | 1 CO |
| Manufacturer function codes | L, Li, Lt, Lit |
| Selectable timing ranges | 1 s / 3 s / 10 s / 30 s / 100 s / 300 s / 30 min / 300 min / 30 h / 300 h |
| Width | 22.5 mm |
| Connection | Screw connector |
