Modular timing relay RE22R2AMU — 24 V DC / 24…240 V AC
Reference: RE22R2AMU

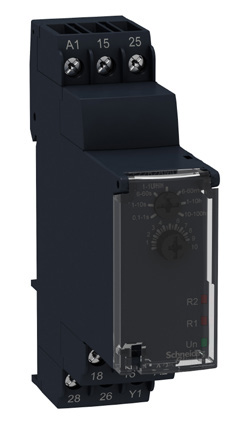

Official manufacturer illustration for RE22R2AMU.
At a glance
Schneider Electric RE22R2AMU modular timing relay, Harmony Time range.
- Range
- Harmony Time
- Supply voltage
- 24 V DC / 24...240 V AC
- Output
- 2 CO, 8 A - 250 V
- Manufacturer function codes
- A, At
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Schneider Electric RE22R2AMU modular timing relay, Harmony Time range.
Supply voltage: 24 V DC / 24...240 V AC; Output: 2 CO, 8 A - 250 V; Manufacturer function codes: A, At; Selectable timing ranges: 1 s / 10 s / 1 min / 10 min / 1 h / 10 h / 100 h.
Timing and sequencing of machine, pump and control-panel circuits.
Select the timing function, time range and output type for the circuit. Function codes refer to the manufacturer timing diagrams; check permissible load and voltage before selection.
For an MWB TRADING quotation, specify RE22R2AMU, quantity and destination country. Availability and packaging will be confirmed with the offer.
Applications
- Timing and sequencing of machine, pump and control-panel circuits.
For a tailored quotation
Select the timing function, time range and output type for the circuit. Function codes refer to the manufacturer timing diagrams; check permissible load and voltage before selection.
Contact our team ↗Specifications
| Brand | Schneider Electric |
|---|---|
| Reference | RE22R2AMU |
| Range | Harmony Time |
| Supply voltage | 24 V DC / 24...240 V AC |
| Output | 2 CO, 8 A - 250 V |
| Manufacturer function codes | A, At |
| Selectable timing ranges | 1 s / 10 s / 1 min / 10 min / 1 h / 10 h / 100 h |
| Width | 22.5 mm |
| Connection | Screw connector |
