MV strain clamp for bare conductors PA-A148
Reference: PA-A148

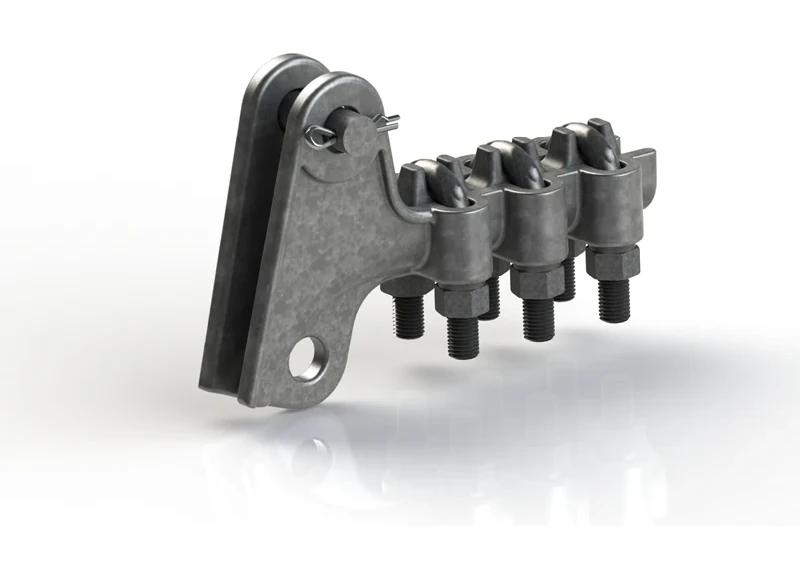

Model image. Confirm the variant and specifications with the offer.
At a glance
Strain clamp for bare aluminium-alloy conductors on medium-voltage lines. It anchors the conductor and connects it to the insulator string.
- Rated voltage
- 15 / 30 kV
- Conductor cross-section
- 93.1–148 mm²
- Conductor outside diameter
- 12.5–15.75 mm
- Clamp mechanical strength
- ≥ 6 000 daN
Build your quotationTailored quotation
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Strain clamp for bare aluminium-alloy conductors on medium-voltage lines. It anchors the conductor and connects it to the insulator string.
Applications
- Overhead electrical networks
For a tailored quotation
Specify the reference, conductor type and cross-section, network voltage, required mechanical loads, quantity and destination. Confirm assembly compatibility and the offered version with the quotation.
Contact our team ↗Specifications
| Reference | PA-A148 |
|---|---|
| Rated voltage | 15 / 30 kV |
| Conductor cross-section | 93.1–148 mm² |
| Conductor outside diameter | 12.5–15.75 mm |
| Clamp mechanical strength | ≥ 6 000 daN |
| Bolt tightening torque | 30 N·m |
| Ball socket connection opening | ≥ 16 mm |
| Pivot pin diameter | 16 mm |
| Listed standards | CEI IEC 61284 / EN ISO 1461 |
