MV strain clamp for bare conductors PA-A54
Reference: PA-A54

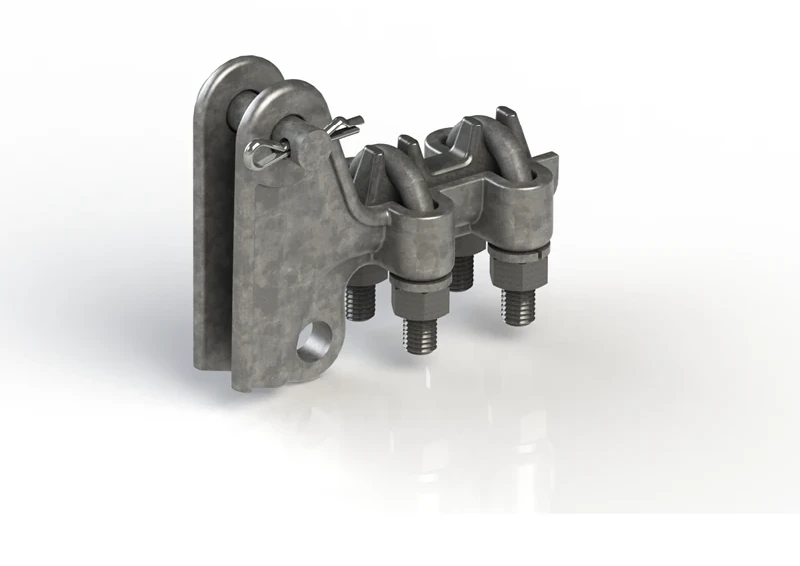

Model image. Confirm the variant and specifications with the offer.
At a glance
Strain clamp for bare aluminium-alloy conductors on medium-voltage lines. It anchors the conductor and connects it to the insulator string.
- Rated voltage
- 15 / 30 kV
- Conductor cross-section
- 54.6–59.7 mm²
- Conductor outside diameter
- 9.45–10 mm
- Clamp mechanical strength
- ≥ 2 000 daN
Build your quotationTailored quotation
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Strain clamp for bare aluminium-alloy conductors on medium-voltage lines. It anchors the conductor and connects it to the insulator string.
Applications
- Overhead electrical networks
For a tailored quotation
Specify the reference, conductor type and cross-section, network voltage, required mechanical loads, quantity and destination. Confirm assembly compatibility and the offered version with the quotation.
Contact our team ↗Specifications
| Reference | PA-A54 |
|---|---|
| Rated voltage | 15 / 30 kV |
| Conductor cross-section | 54.6–59.7 mm² |
| Conductor outside diameter | 9.45–10 mm |
| Clamp mechanical strength | ≥ 2 000 daN |
| Bolt tightening torque | 21 N·m |
| Ball socket connection opening | ≥ 14 mm |
| Pivot pin diameter | 12 mm |
| Listed standards | CEI IEC 61284 / EN ISO 1461 |
