MV suspension clamp for bare conductors PS-A34
Reference: PS-A34

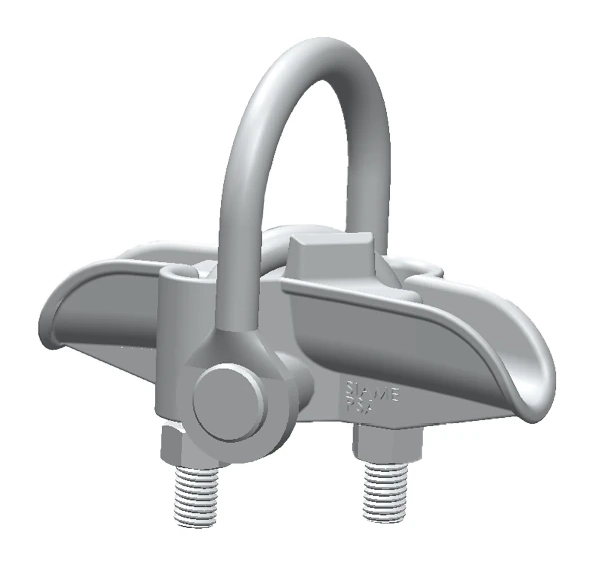

Model image. Confirm the variant and specifications with the offer.
At a glance
Suspension clamp supporting a bare aluminium-alloy conductor on a medium-voltage line. Model selection depends on conductor cross-section, diameter and mechanical loads.
- Rated voltage
- 15 / 30 kV
- Conductor cross-section
- 34.4–75.5 mm²
- Conductor outside diameter
- 7.5–11.25 mm
- Clamp mechanical strength
- ≥ 1 500 daN
Build your quotationTailored quotation
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Suspension clamp supporting a bare aluminium-alloy conductor on a medium-voltage line. Model selection depends on conductor cross-section, diameter and mechanical loads.
Applications
- Overhead electrical networks
For a tailored quotation
Specify the reference, conductor type and cross-section, network voltage, required mechanical loads, quantity and destination. Confirm assembly compatibility and the offered version with the quotation.
Contact our team ↗Specifications
| Reference | PS-A34 |
|---|---|
| Rated voltage | 15 / 30 kV |
| Conductor cross-section | 34.4–75.5 mm² |
| Conductor outside diameter | 7.5–11.25 mm |
| Clamp mechanical strength | ≥ 1 500 daN |
| Bolt tightening torque | 21 N·m |
| Shackle diameter | 12 mm |
| Listed standards | CEI IEC 61284 / EN ISO 1461 |
