OR11 ball eye for insulator strings
Reference: OR11

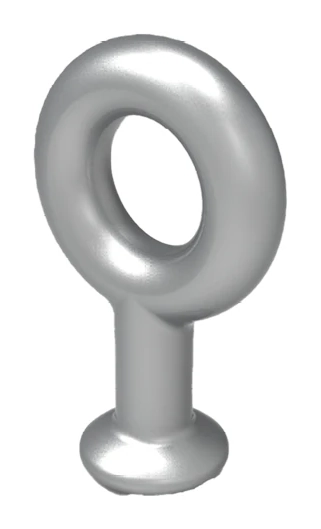

Model image. Confirm the variant and specifications with the offer.
At a glance
Ball eye fitting for mechanical connection of insulator strings on medium-voltage overhead networks.
- Rated voltage
- 15 / 30 kV
- Eye internal diameter B
- 22 mm
- Diameter C
- 11 mm
- Length L
- 54 mm
Build your quotationTailored quotation
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Ball eye fitting for mechanical connection of insulator strings on medium-voltage overhead networks.
Applications
- Overhead electrical networks
For a tailored quotation
Specify the reference, conductor type and cross-section, network voltage, required mechanical loads, quantity and destination. Confirm assembly compatibility and the offered version with the quotation.
Contact our team ↗Specifications
| Reference | OR11 |
|---|---|
| Rated voltage | 15 / 30 kV |
| Eye internal diameter B | 22 mm |
| Diameter C | 11 mm |
| Length L | 54 mm |
| Breaking load | 4 000 daN |
| Listed standards | CEI IEC 61284 / EN ISO 1461 / CEI IEC 60120 |
| Materials | Hot-dip galvanised steel |
