PowerLogic CT METSECT5DB150 current transformer – 1500/5 A – DB
Reference: METSECT5DB150

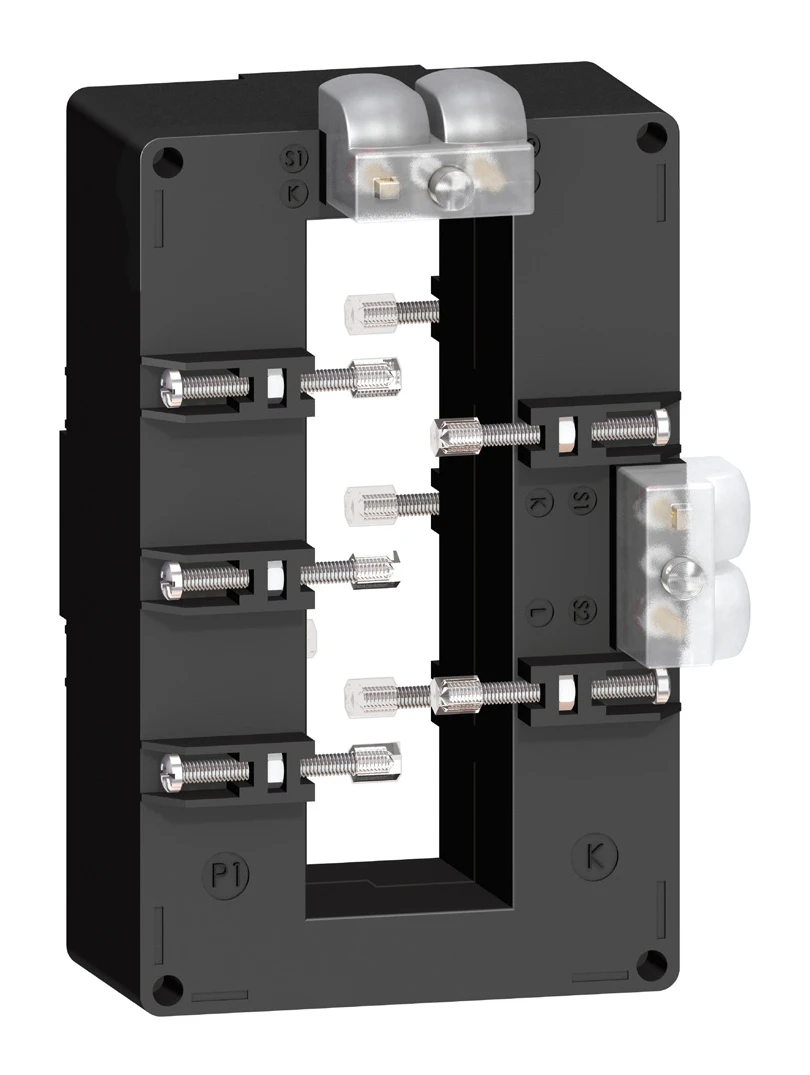

Official illustration of form factor DB. Ratio and class depend on the reference.
At a glance
Schneider Electric METSECT5DB150 current transformer, PowerLogic CT range: 1500/5 A - DB.
- Range
- PowerLogic CT
- Rated primary current (A)
- 1500
- Secondary current (A)
- 5
- Core
- Solid
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Schneider Electric METSECT5DB150 current transformer, PowerLogic CT range: 1500/5 A - DB.
Rated primary current (A): 1500. Secondary current (A): 5. Core: Solid. Manufacturer form factor: DB. Burden at class 0.5 (VA): 10.
Electrical measurement, consumption monitoring and switchboard instrumentation.
Check the supply system, current, metering accuracy and interfaces required for the project. Wiring, mounting and compatibility requirements are detailed in the attached documentation. Select the transformer for the cable or busbar opening, transformation ratio and total metering circuit burden.
For your MWB TRADING enquiry, specify reference METSECT5DB150, quantities, application and delivery country. Availability and packaging are confirmed with the quotation.
Applications
- Electrical measurement, consumption monitoring and switchboard instrumentation.
For a tailored quotation
Check the supply system, current, metering accuracy and interfaces required for the project. Wiring, mounting and compatibility requirements are detailed in the attached documentation. Select the transformer for the cable or busbar opening, transformation ratio and total metering circuit burden.
Contact our team ↗Specifications
| Brand | Schneider Electric |
|---|---|
| Reference | METSECT5DB150 |
| Range | PowerLogic CT |
| Rated primary current (A) | 1500 |
| Secondary current (A) | 5 |
| Core | Solid |
| Manufacturer form factor | DB |
| Burden at class 0.5 (VA) | 10 |
| Burden at class 1 (VA) | 15 |
