PowerLogic current transformer (CT) — 1500/5 A — METSECT5DH150
Reference: METSECT5DH150

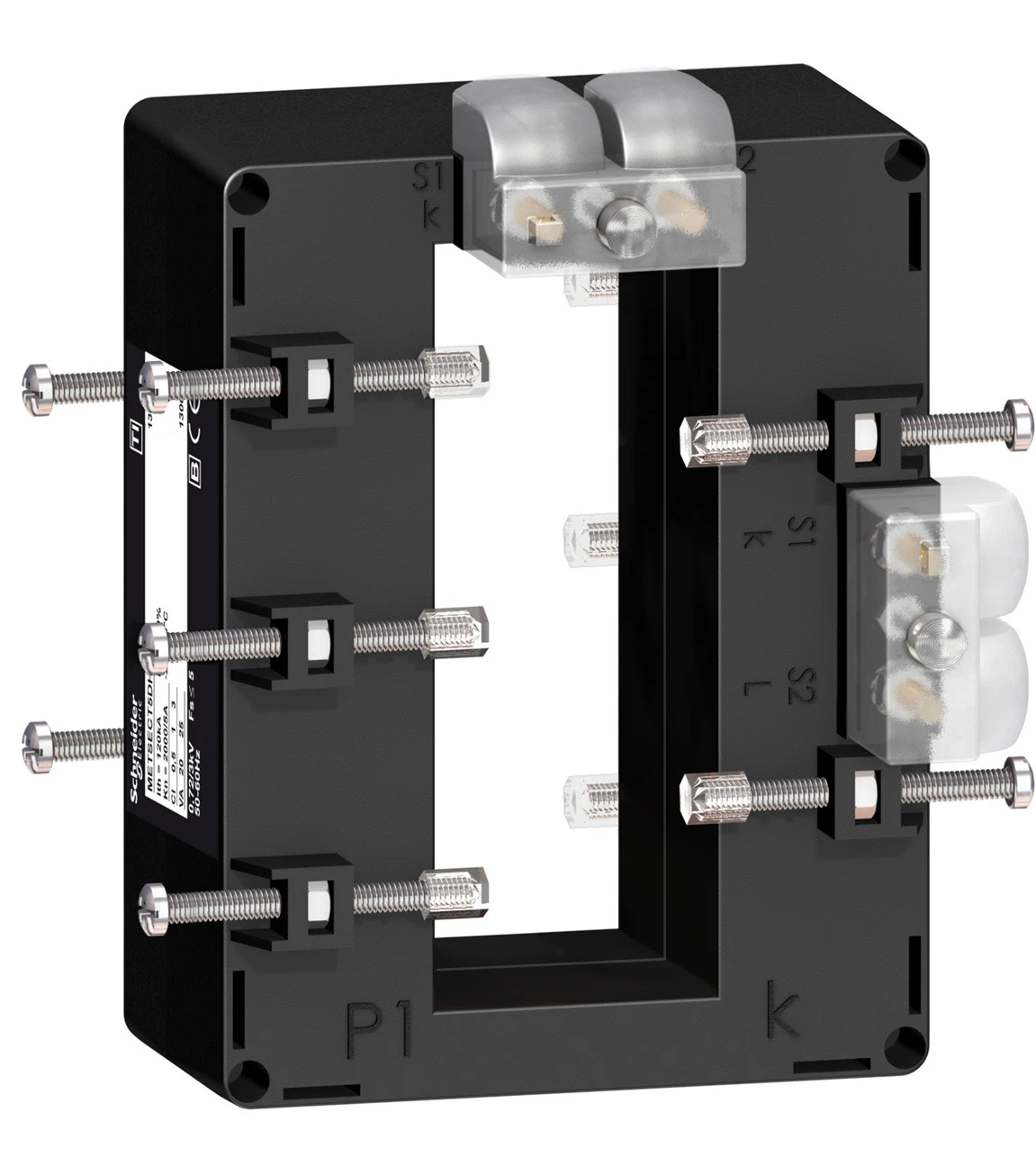

Official illustration of form factor DH. Ratio and class depend on the reference.
At a glance
Solid-core instrument current transformer (CT), 1500/5 A ratio. Schneider Electric METSECT5DH150 supplies a 5 A secondary current at a rated primary current of 1500 A for compatible meters and power monitoring devices.
- Transformer type
- Current (CT) — measurement and metering
- Current ratio
- 1500/5 A
- Core
- Solid
- Measured signal
- Alternating current (AC)
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
PowerLogic METSECT5DH150 measures alternating current by supplying a proportional secondary current. It is intended for electrical measurement and metering through a compatible 5 A current input.
The accuracy class / rated burden combinations for this reference are: class 0.5: 12 VA; class 1: 15 VA. The VA burden applies to the complete measuring circuit, including instruments and wiring. These are metering accuracy classes; protection duties require separately verified characteristics.
The solid core requires the cable or busbar to pass through the transformer during installation. Check the conductor dimensions and the required aperture before selection.
Applications
- AC current metering
- Power meters and network monitoring
For a tailored quotation
Select the ratio for the current to be measured, then check the instrument’s 5 A input, accuracy class, total VA burden and cable or busbar aperture. Follow the secondary polarity and wiring requirements in the instructions.
Contact our team ↗Specifications
| Brand | Schneider Electric |
|---|---|
| Reference | METSECT5DH150 |
| Transformer type | Current (CT) — measurement and metering |
| Current ratio | 1500/5 A |
| Core | Solid |
| Measured signal | Alternating current (AC) |
| Range | PowerLogic CT |
| Rated primary current (A) | 1500 |
| Secondary current (A) | 5 |
| Manufacturer form factor | DH |
| Burden at class 0.5 (VA) | 12 |
| Burden at class 1 (VA) | 15 |
