PowerLogic current transformer (CT) — 150/5 A — METSECT5GA015
Reference: METSECT5GA015

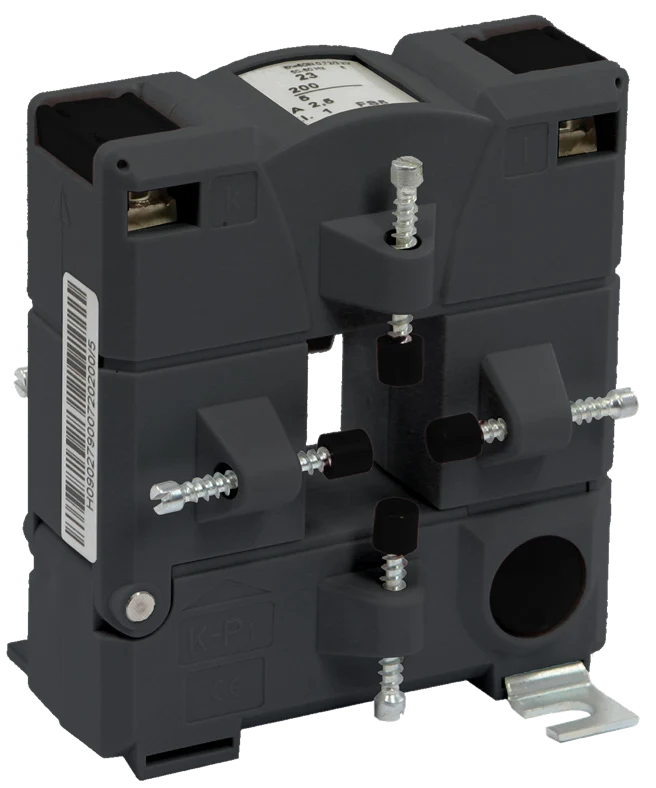

Official illustration of form factor GA. Ratio and class depend on the reference.
At a glance
Split-core instrument current transformer (CT), 150/5 A ratio. Schneider Electric METSECT5GA015 supplies a 5 A secondary current at a rated primary current of 150 A for compatible meters and power monitoring devices.
- Transformer type
- Current (CT) — measurement and metering
- Current ratio
- 150/5 A
- Core
- Split
- Measured signal
- Alternating current (AC)
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
PowerLogic METSECT5GA015 measures alternating current by supplying a proportional secondary current. It is intended for electrical measurement and metering through a compatible 5 A current input.
The accuracy class / rated burden combinations for this reference are: class 3: 1.5 VA. The VA burden applies to the complete measuring circuit, including instruments and wiring. These are metering accuracy classes; protection duties require separately verified characteristics.
The split core can be placed around an existing conductor. Check aperture dimensions and the installation conditions in the instructions before fitting.
Applications
- AC current metering
- Power meters and network monitoring
For a tailored quotation
Select the ratio for the current to be measured, then check the instrument’s 5 A input, accuracy class, total VA burden and cable or busbar aperture. Follow the secondary polarity and wiring requirements in the instructions.
Contact our team ↗Specifications
| Brand | Schneider Electric |
|---|---|
| Reference | METSECT5GA015 |
| Transformer type | Current (CT) — measurement and metering |
| Current ratio | 150/5 A |
| Core | Split |
| Measured signal | Alternating current (AC) |
| Range | PowerLogic CT |
| Rated primary current (A) | 150 |
| Secondary current (A) | 5 |
| Manufacturer form factor | GA |
| Burden at class 3 (VA) | 1.5 |
