PrismaSeT P hinged front plate frame support — LVS08564
Reference: LVS08564

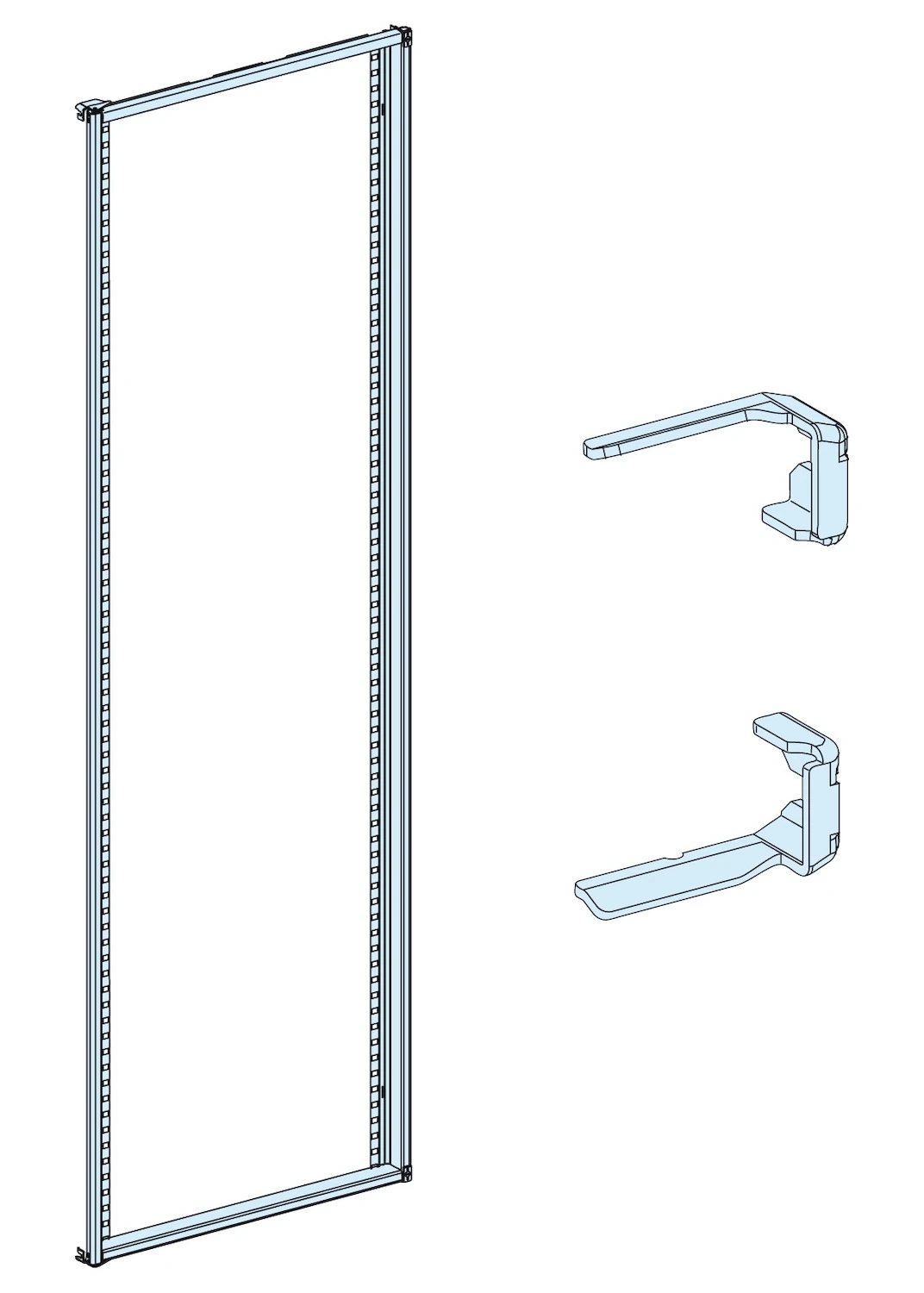

Official manufacturer image associated with reference LVS08564.
At a glance
Schneider Electric PrismaSeT P hinged front plate frame support — LVS08564.
- Range
- PrismaSeT P
- Function
- hinged front plate frame support
- Compatibility
- PrismaSeT P
- Width (mm)
- 400
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Schneider Electric PrismaSeT P hinged front plate frame support — LVS08564.
Compatibility: PrismaSeT P; Width (mm): 400; Opening direction: Reversible left/right, subject to MTZ2 configuration; Fastening: Two fixing points. This component forms part of a PrismaSeT P assembly; the remaining cubicle parts are selected for the required configuration.
Check cubicle width, depth and configuration, together with the combination parts listed in the manufacturer catalogue.
Applications
- Assembly and equipment of PrismaSeT P enclosures
For a tailored quotation
Check cubicle width, depth and configuration, together with the combination parts listed in the manufacturer catalogue.
Contact our team ↗Specifications
| Brand | Schneider Electric |
|---|---|
| Reference | LVS08564 |
| Range | PrismaSeT P |
| Function | hinged front plate frame support |
| Compatibility | PrismaSeT P |
| Width (mm) | 400 |
| Opening direction | Reversible left/right, subject to MTZ2 configuration |
| Fastening | Two fixing points |
