PrismaSeT P partial hinged cover-frame support — LVS08560
Reference: LVS08560

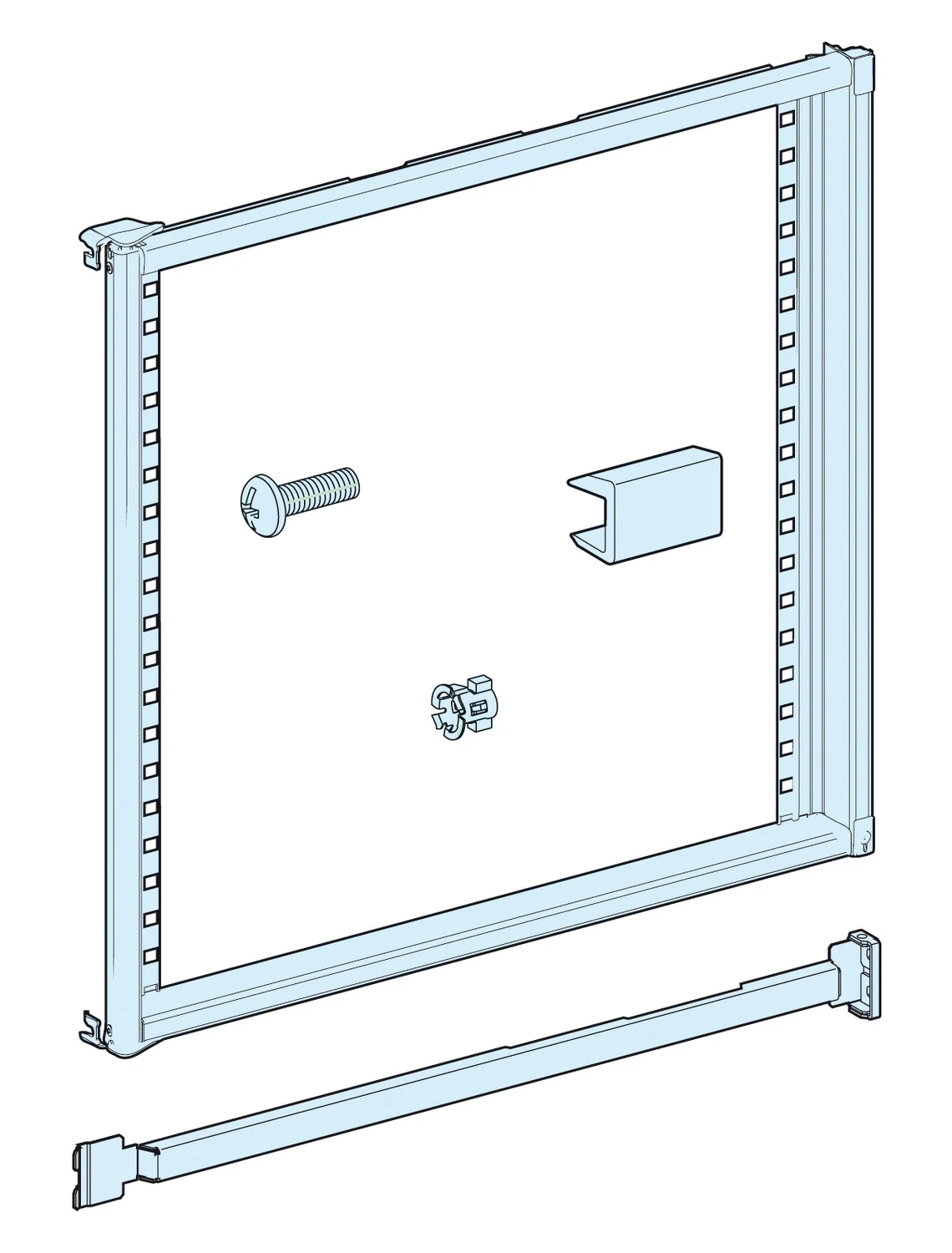

Official manufacturer image associated with reference LVS08560.
At a glance
Schneider Electric PrismaSeT P partial hinged cover-frame support — LVS08560.
- Range
- PrismaSeT P
- Function
- partial hinged cover-frame support
- Compatibility
- PrismaSeT P
- Width (mm)
- 650
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Schneider Electric PrismaSeT P partial hinged cover-frame support — LVS08560.
Compatibility: PrismaSeT P; Width (mm): 650; Total modular capacity: 10; Compatible enclosure: Drawout MasterPacT MTZ2 / Fupact ISFL configurations according to table. This component forms part of a PrismaSeT P assembly; the remaining cubicle parts are selected for the required configuration.
Check cubicle width, depth and configuration, together with the combination parts listed in the manufacturer catalogue.
Applications
- Assembly and equipment of PrismaSeT P enclosures
For a tailored quotation
Check cubicle width, depth and configuration, together with the combination parts listed in the manufacturer catalogue.
Contact our team ↗Specifications
| Brand | Schneider Electric |
|---|---|
| Reference | LVS08560 |
| Range | PrismaSeT P |
| Function | partial hinged cover-frame support |
| Compatibility | PrismaSeT P |
| Width (mm) | 650 |
| Total modular capacity | 10 |
| Compatible enclosure | Drawout MasterPacT MTZ2 / Fupact ISFL configurations according to table |
