Manufacturer reference

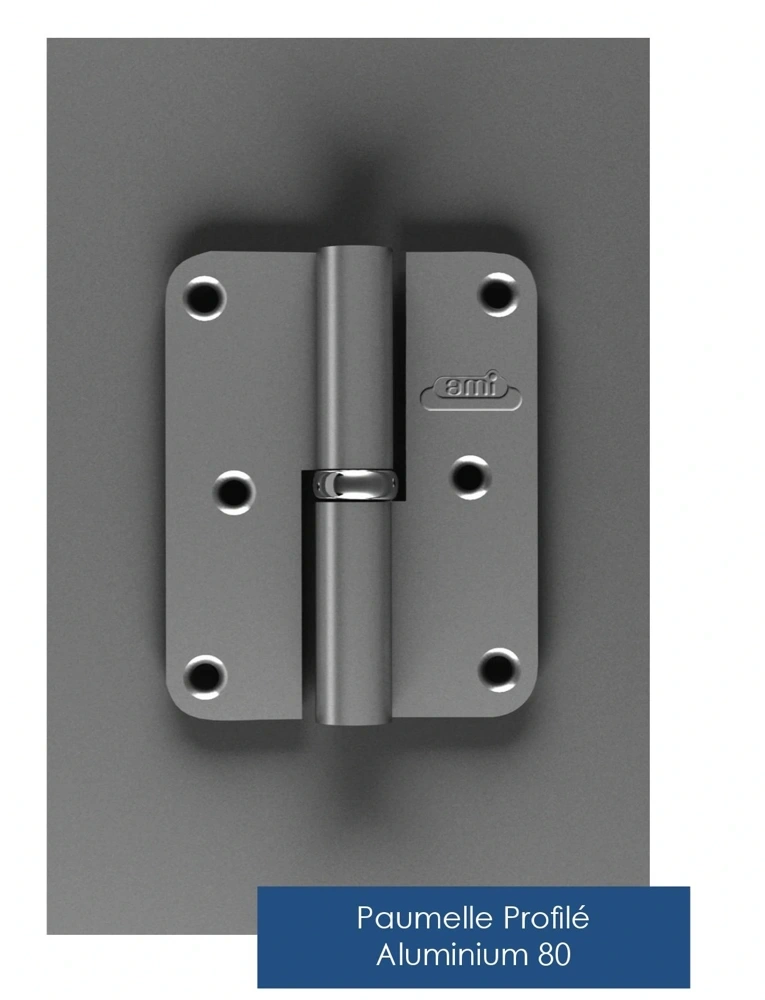

Profiled aluminium 80 lift-off hinge
Reference: MWB-8DD1ED674A
The AMI profiled aluminium 80 hinge has two drilled leaves and a central joint.
- MWB catalogue reference
- MWB-8DD1ED674A
- Dimensions A × B × E
- 80 × 76 × 4 mm
- Diameter D
- 14 mm
Build your quotationTailored quotation
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
The AMI profiled aluminium 80 hinge has two drilled leaves and a central joint. The official table lists a width of 76 mm and thickness of 4 mm.
The listed finish is satin lacquer on aluminium. Diameter D is 14 mm and the stated screw size is 4 mm; hole positions should follow the drawing for the selected version.
Applications
- Joinery hardware
- Door assembly
For a tailored quotation
Specify the reference, quantity and installation requirements. MWB TRADING checks availability and prepares a quotation for your project and delivery country.
Contact our team ↗Specifications
| Brand | AMI |
|---|---|
| Reference | MWB-8DD1ED674A |
| MWB catalogue reference | MWB-8DD1ED674A |
| Dimensions A × B × E | 80 × 76 × 4 mm |
| Diameter D | 14 mm |
| Dimension F | 29 mm |
| Finish | Satin-lacquered aluminium |
