Range to configure

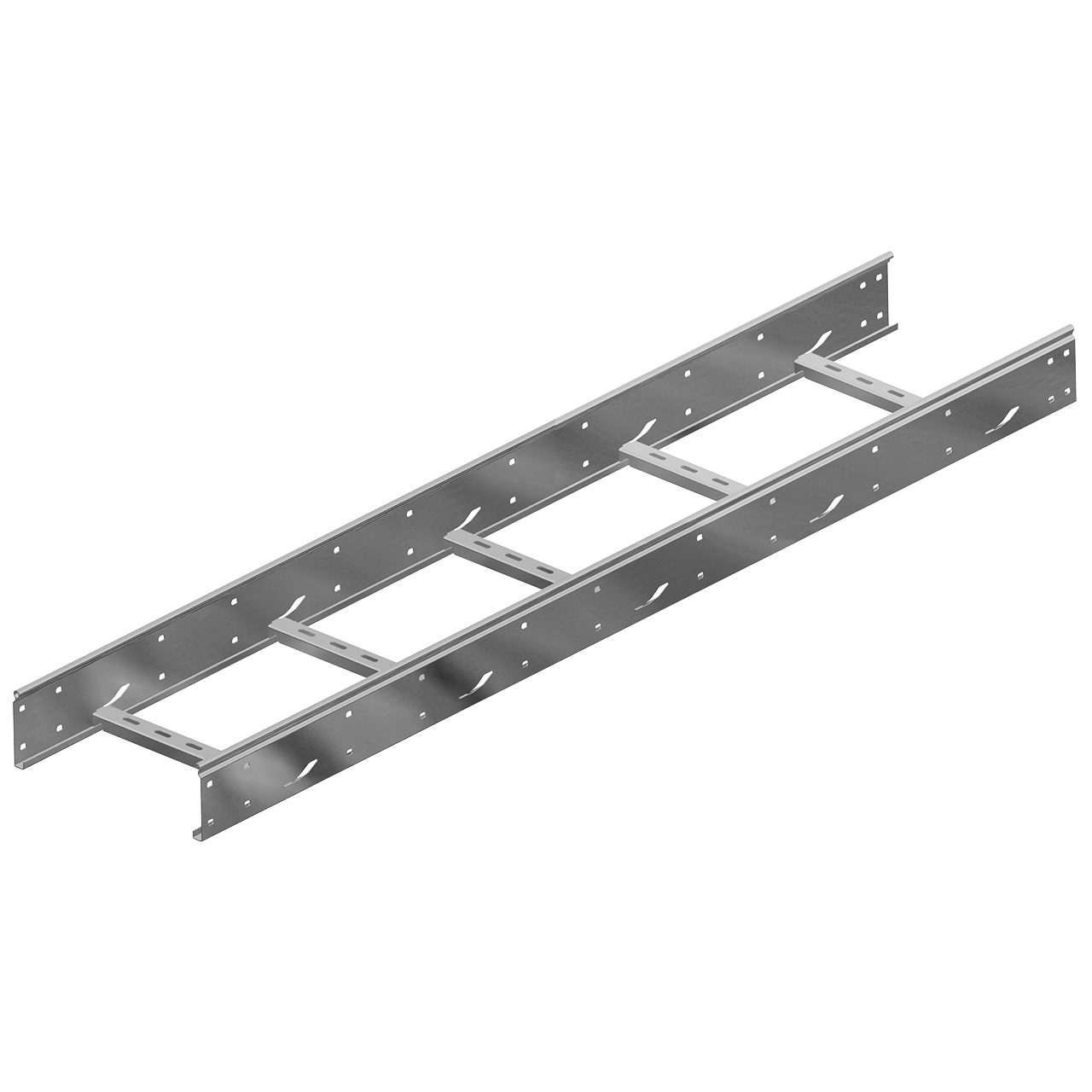

S3 cable ladder
Reference: MWB-3EE9E18206
S3 cable ladder
- MWB catalogue reference
- MWB-3EE9E18206
- System
- S3
Build your quotationTailored quotation
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
The S3 ladder combines two side rails with rungs to provide an open cable support. It connects to the bends, tees and reducers designed for this system.
The references distinguish documented dimensions and finishes, including additions explicitly listed in the selection catalogue. Separately supplied rails, rungs and covers have distinct records.
Applications
- It forms the straight runs of the cable route. The base and side geometry distinguish this cable routing model.
For a tailored quotation
Specify the reference, quantity and installation requirements. MWB TRADING checks availability and prepares a quotation for your project and delivery country.
Contact our team ↗Specifications
| Reference | MWB-3EE9E18206 |
|---|---|
| MWB catalogue reference | MWB-3EE9E18206 |
| System | S3 |
References and variants
Compare dimensions and configurations, then choose the variant for your quotation.
12 variants
| Reference / variant | Specifications | Quotation |
|---|---|---|
| 1511010 | See dimensions and configuration in the catalogue, PDF page 14. | |
| 1511020 | Finish: ZS — Sendzimir galvanized steel; Length L (mm): 3000; Height H (mm): 100; Width B (mm): 200; Usable section (cm²): 166; Pack (m): 3 | |
| 1511030 | Finish: ZS — Sendzimir galvanized steel; Length L (mm): 3000; Height H (mm): 100; Width B (mm): 300; Usable section (cm²): 249; Pack (m): 3 | |
| 1511040 | Finish: ZS — Sendzimir galvanized steel; Length L (mm): 3000; Height H (mm): 100; Width B (mm): 400; Usable section (cm²): 332; Pack (m): 3 | |
| 1511050 | Finish: ZS — Sendzimir galvanized steel; Length L (mm): 3000; Height H (mm): 100; Width B (mm): 500; Usable section (cm²): 415; Pack (m): 3 | |
| 1511060 | Finish: ZS — Sendzimir galvanized steel; Length L (mm): 3000; Height H (mm): 100; Width B (mm): 600; Usable section (cm²): 498; Pack (m): 3 | |
| 1521010 | See dimensions and configuration in the catalogue, PDF page 14. | |
| 1521020 | Finish: ZF — hot dip galvanized steel after fabrication; Length L (mm): 3000; Height H (mm): 100; Width B (mm): 200; Usable section (cm²): 166; Pack (m): 3 | |
| 1521030 | Finish: ZF — hot dip galvanized steel after fabrication; Length L (mm): 3000; Height H (mm): 100; Width B (mm): 300; Usable section (cm²): 249; Pack (m): 3 | |
| 1521040 | Finish: ZF — hot dip galvanized steel after fabrication; Length L (mm): 3000; Height H (mm): 100; Width B (mm): 400; Usable section (cm²): 332; Pack (m): 3 | |
| 1521050 | Finish: ZF — hot dip galvanized steel after fabrication; Length L (mm): 3000; Height H (mm): 100; Width B (mm): 500; Usable section (cm²): 415; Pack (m): 3 | |
| 1521060 | Finish: ZF — hot dip galvanized steel after fabrication; Length L (mm): 3000; Height H (mm): 100; Width B (mm): 600; Usable section (cm²): 498; Pack (m): 3 |
