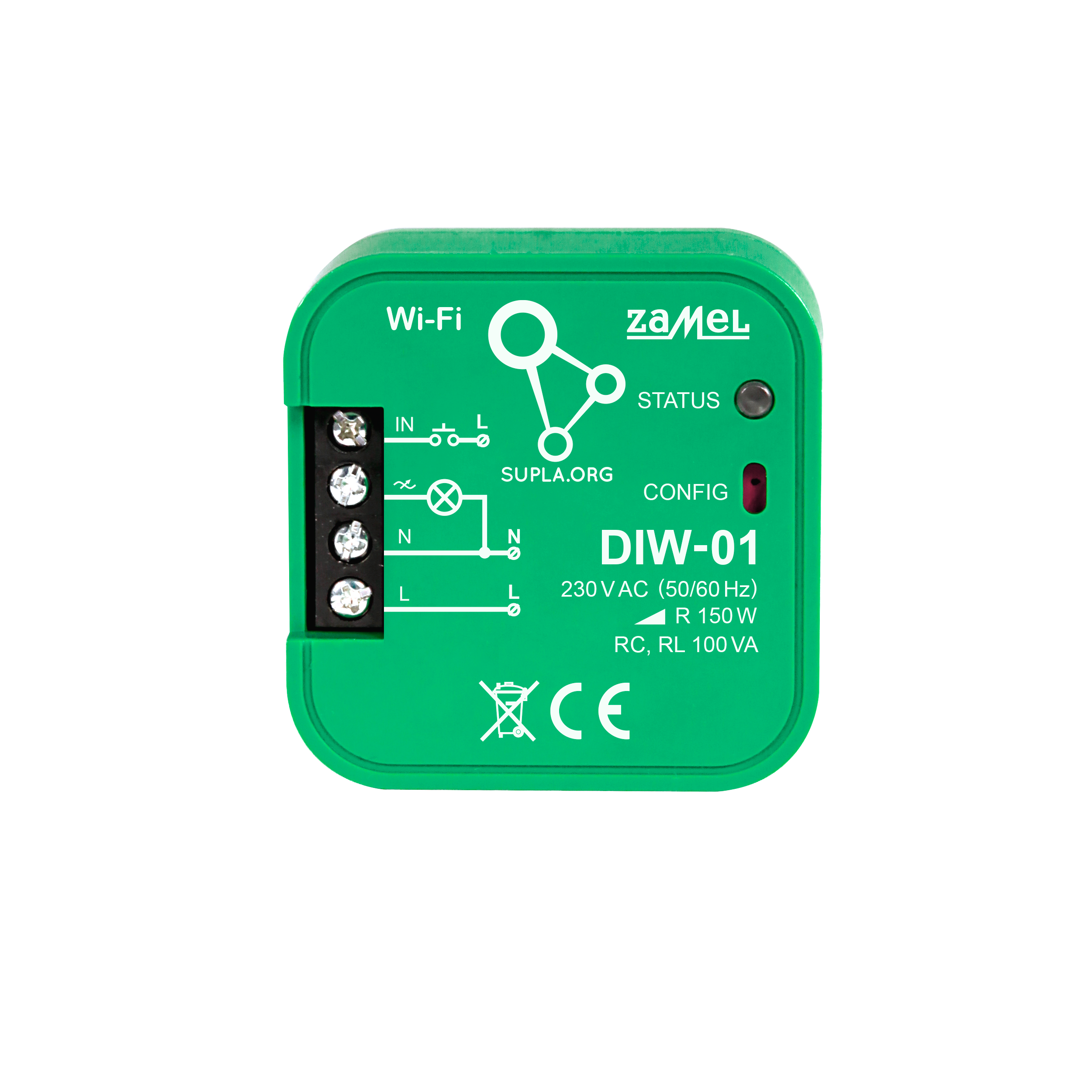

Official photograph of the ZAMEL DIW-01 module.
Manufacturer reference
ZAMEL DIW-01 Wi-Fi lighting dimmer
Reference: DIW-01
The ZAMEL DIW-01 dimmer adjusts a compatible lighting circuit through the SUPLA app over 2.4 GHz Wi-Fi.
- Supply voltage
- 230 V AC
- Rated frequency
- 50/60 Hz
- Communication
- 2.4 GHz Wi-Fi b/g/n
Build your quotationTailored quotation
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
The ZAMEL DIW-01 dimmer adjusts a compatible lighting circuit through the SUPLA app over 2.4 GHz Wi-Fi. It combines remote control with a local input for a momentary pushbutton or a bistable switch; with a bistable switch, brightness is adjusted in the app.
The 230 V AC, 50/60 Hz module has one output and fits a 60 mm installation box. Its maximum load depends on the load type: 150 W for resistive R loads or 100 VA for RC or RL loads. The 47.5 × 47.5 × 23 mm enclosure and IP20 rating help specify it for a protected indoor installation.
The DIW-01 appears in the SOMEF home-automation offering as an LED dimmer. The manufacturer specifies incandescent and halogen lighting as well as selected dimmable LED and compact fluorescent lamps. Confirm the lamp technology and dimming compatibility before selecting the circuit load.
Applications
- Dimming compatible lighting circuits
- Indoor residential lighting
- Local and connected lighting control
For a tailored quotation
Check lamp dimming compatibility and whether the load is R, RC or RL. The 150 W limit does not apply indiscriminately to every lamp type.
Contact our team ↗Specifications
| Brand | ZAMEL |
|---|---|
| Reference | DIW-01 |
| Supply voltage | 230 V AC |
| Rated frequency | 50/60 Hz |
| Communication | 2.4 GHz Wi-Fi b/g/n |
| Maximum output load | 150 W (R); 100 VA (RC/RL) |
| Input / output | 1 control input; 1 output channel |
| Local control | Momentary pushbutton or bistable switch; app dimming when using a bistable switch |
| Dimensions | 47.5 × 47.5 × 23 mm |
| Mounting | Ø 60 mm installation box |
| Protection rating | IP20 |
| Light sources | Incandescent, halogen and selected dimmable LED or compact fluorescent lamps |
Manufacturer documentation
Open documents in a reading window without leaving this page.
