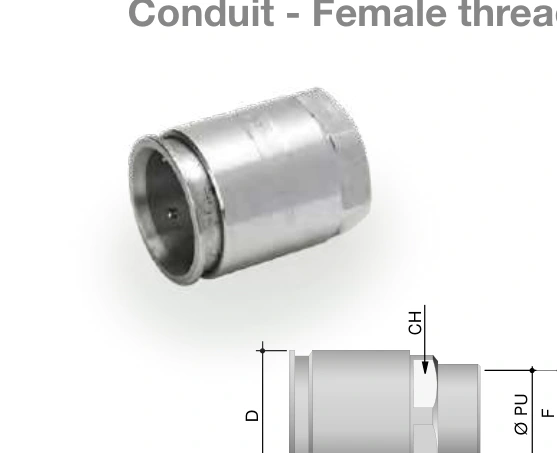

Range illustration extracted from the official catalogue; dimensions and configuration depend on the selected reference.
Range to configure
AISI 316L stainless steel quick coupling fittings — Conduit – Female thread 6112-xx
Reference: MWB-F4195CEAF4
AISI 316L stainless steel quick coupling fittings — Conduit - Female thread 6112-xx
- MWB catalogue reference
- MWB-F4195CEAF4
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
AISI 316L stainless steel quick coupling fittings — Conduit - Female thread 6112-xx. This model protects conductors or connects their protective conduit. The material, diameter and connection type in the variants determine the matching components.
The variants below retain their exact reference and the specifications recorded for each. Check the selected variant’s dimensions, connection and finish in the associated technical table when assembling the system.
Applications
- This model protects conductors or connects their protective conduit. The material, diameter and connection type in the variants determine the matching components.
For a tailored quotation
Specify the reference, quantity and installation requirements. MWB TRADING checks availability and prepares a quotation for your project and delivery country.
Contact our team ↗Specifications
| Reference | MWB-F4195CEAF4 |
|---|---|
| MWB catalogue reference | MWB-F4195CEAF4 |
References and variants
Compare dimensions and configurations, then choose the variant for your quotation.
13 variants
| Reference / variant | Specifications | Quotation |
|---|---|---|
| 6112-16XX | Depth D (mm): 24 | |
| 6112-20XX | Depth D (mm): 28 | |
| 6112-25XX | Depth D (mm): 32 | |
| 6112-32XX | Depth D (mm): 39 | |
| 6112-40XX | Depth D (mm): 50 | |
| 6112-50XX | Depth D (mm): 60 | |
| 6112-63XX | Depth D (mm): 75 | |
| 6117XX20N | Depth D (mm): 33 | |
| 6117XX25N | Depth D (mm): 40 | |
| 6117XX32N | Depth D (mm): 50 | |
| 6117XX4035 | Depth D (mm): 55 | |
| 6117XX5040 | Depth D (mm): 64 | |
| 6117XX63N | Depth D (mm): 75 |
