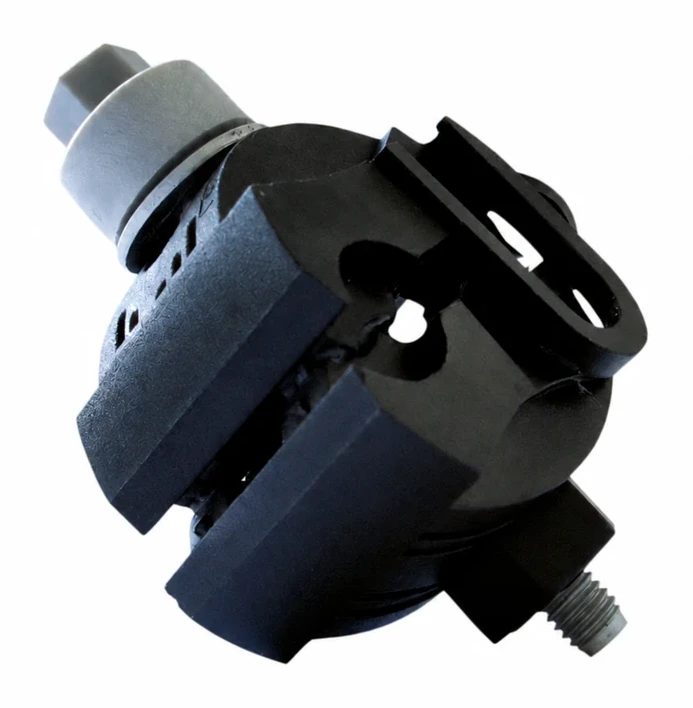

CPA70 insulation-piercing service connector
Reference: CPA70
Image retouched to remove commercial branding. Confirm the variant and specifications with the offer.
At a glance
Insulation-piercing connector for a service branch on a low-voltage overhead network. Branch conductor ranges depend on the selected version.
- Rated voltage
- 0.6 / 1 kV
- Listed dielectric withstand
- 6 kV in water
- Listed standards
- NFC33-020 / EN 50483-4
- Materials
- Aluminium-alloy or tinned-copper-alloy contact blades
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Insulation-piercing connector for a service branch on a low-voltage overhead network. Branch conductor ranges depend on the selected version.
CBS/CT70 — Main 16-70 mm²; branch 16-25 mm²; aluminium alloy; torque 14 N·m
CBS/CT70 — Main 16-70 mm²; branch 4-25 mm²; aluminium alloy; torque 14 N·m
CBS/CT70 — Main 16-70 mm²; branch 16-35 mm²; aluminium alloy; torque 14 N·m
CBS/CT70 — Main 16-70 mm²; branch 16-25 mm²; tinned copper alloy; torque 14 N·m
CBS/CT70 — Main 16-70 mm²; branch 4-25 mm²; tinned copper alloy; torque 14 N·m
CBS/CT70 — Main 16-70 mm²; branch 16-35 mm²; tinned copper alloy; torque 14 N·m
Applications
- Low-voltage overhead networks
- Insulated conductor connections
For a tailored quotation
Specify the reference, conductor type and cross-section, network voltage, required mechanical loads, quantity and destination. Confirm assembly compatibility and the offered version with the quotation.
Contact our team ↗Specifications
| Reference | CPA70 |
|---|---|
| Rated voltage | 0.6 / 1 kV |
| Listed dielectric withstand | 6 kV in water |
| Listed standards | NFC33-020 / EN 50483-4 |
| Materials | Aluminium-alloy or tinned-copper-alloy contact blades |
| Main conductor range | 16–70 mm² |
| Branch conductor ranges by version | 16–25 / 4–25 / 16–35 mm² |
| Tightening torque | 14 N·m |
