Parallel-groove branch connector BMA54 for bare conductors
Reference: BMA54

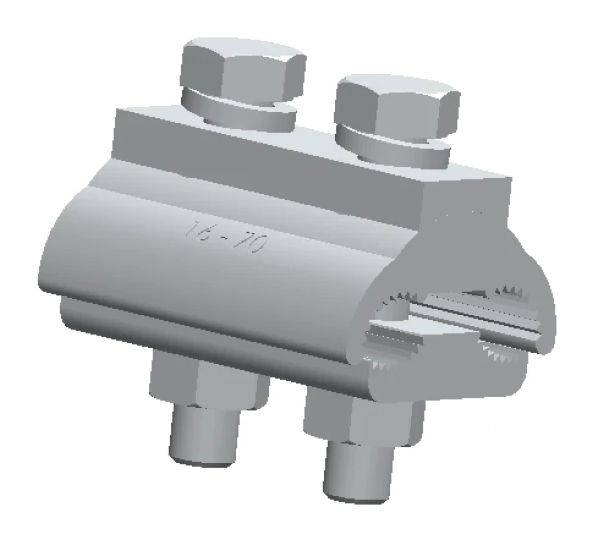

Model image. Confirm the variant and specifications with the offer.
At a glance
Partial-tension branch connector for bare aluminium or aluminium-alloy conductors. Its jaws provide electrical contact between the main and branch conductors.
- Rated voltage
- 15 / 30 kV
- Main conductor
- 16–70 mm²
- Branch conductor
- 16–70 mm²
- Length
- 50 mm
Build your quotationTailored quotation
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Partial-tension branch connector for bare aluminium or aluminium-alloy conductors. Its jaws provide electrical contact between the main and branch conductors.
Applications
- Overhead electrical networks
For a tailored quotation
Specify the reference, conductor type and cross-section, network voltage, required mechanical loads, quantity and destination. Confirm assembly compatibility and the offered version with the quotation.
Contact our team ↗Specifications
| Reference | BMA54 |
|---|---|
| Rated voltage | 15 / 30 kV |
| Main conductor | 16–70 mm² |
| Branch conductor | 16–70 mm² |
| Length | 50 mm |
| Width | 37 mm |
| Fasteners | M8 |
| Listed standards | CEI IEC 61284 / EN ISO 1461 |
| Materials | Aluminium-alloy jaws; galvanised-steel fasteners |
