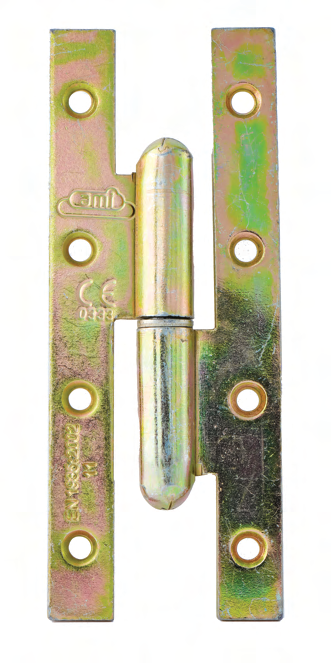

AMI range illustration; dimensions and finish depend on the selected version.
Range to configure
Paris lift-off hinges with square ends
Reference: MWB-577C47BDF0
The AMI Paris hinge range with square ends combines screw-fixed leaves with a lift-off joint.
- MWB catalogue reference
- MWB-577C47BDF0
- Dimensions A × B × E
- 80 × 45 × 2 ; 80 × 45 × 2,5 ; 95 × 45 × 2 ; 95 × 45 × 2,5 ; 110 × 55 × 2 ; 110 × 55 × 2,5 ; 110 × 55 × 2,7 ; 140 × 55 × 2,5 ; 140 × 55 × 3 ; 140 × 60 × 3 ; 140 × 70 × 3 ; 160 × 60 × 3,2 mm
- Listed finishes
- Electrolytic zinc coating; epoxy paint; normal pickled steel
Build your quotationTailored quotation
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
The AMI Paris hinge range with square ends combines screw-fixed leaves with a lift-off joint. The dimensional table helps select the format suited to the joinery.
The range contains twelve dimensional rows, using steel or brass washers according to the row. The listed finishes are electrolytic zinc coating, epoxy paint and normal pickled steel; these options do not define separate reference combinations.
Applications
- Joinery hardware
- Door assembly
For a tailored quotation
Specify the reference, quantity and installation requirements. MWB TRADING checks availability and prepares a quotation for your project and delivery country.
Contact our team ↗Specifications
| Brand | AMI |
|---|---|
| Reference | MWB-577C47BDF0 |
| MWB catalogue reference | MWB-577C47BDF0 |
| Dimensions A × B × E | 80 × 45 × 2 ; 80 × 45 × 2,5 ; 95 × 45 × 2 ; 95 × 45 × 2,5 ; 110 × 55 × 2 ; 110 × 55 × 2,5 ; 110 × 55 × 2,7 ; 140 × 55 × 2,5 ; 140 × 55 × 3 ; 140 × 60 × 3 ; 140 × 70 × 3 ; 160 × 60 × 3,2 mm |
| Listed finishes | Electrolytic zinc coating; epoxy paint; normal pickled steel |
| Packaging | 10 dozen per carton |
