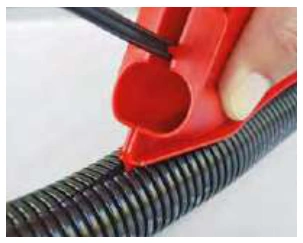

Range illustration extracted from the official catalogue; dimensions and configuration depend on the selected reference.
Range to configure
Polyamide flexible conduit — PA 6 with zip closure (hb UL94) 50zip
Reference: MWB-A613DF0F28
Polyamide flexible conduit — PA 6 with zip closure (hb UL94) 50zip
- MWB catalogue reference
- MWB-A613DF0F28
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
Polyamide flexible conduit — PA 6 with zip closure (hb UL94) 50zip. This model protects conductors or connects their protective conduit. The material, diameter and connection type in the variants determine the matching components.
The variants below retain their exact reference and the specifications recorded for each. Check the selected variant’s dimensions, connection and finish in the associated technical table when assembling the system.
Applications
- This model protects conductors or connects their protective conduit. The material, diameter and connection type in the variants determine the matching components.
For a tailored quotation
Specify the reference, quantity and installation requirements. MWB TRADING checks availability and prepares a quotation for your project and delivery country.
Contact our team ↗Specifications
| Reference | MWB-A613DF0F28 |
|---|---|
| MWB catalogue reference | MWB-A613DF0F28 |
References and variants
Compare dimensions and configurations, then choose the variant for your quotation.
7 variants
| Reference / variant | Specifications | Quotation |
|---|---|---|
| 50ZIP-10N | Nominal diameter (mm): 13; Inside diameter (mm): 10,0; Outside diameter (mm): 13,0; Mass (kg/m): 0,034 | |
| 50ZIP-12N | Nominal diameter (mm): 15,8; Inside diameter (mm): 12,0; Outside diameter (mm): 15,8; Mass (kg/m): 0,044 | |
| 50ZIP-17N | Nominal diameter (mm): 21,2; Inside diameter (mm): 16,5; Outside diameter (mm): 21,2; Mass (kg/m): 0,076 | |
| 50ZIP-23N | Nominal diameter (mm): 28,5; Inside diameter (mm): 23,0; Outside diameter (mm): 28,5; Mass (kg/m): 0,110 | |
| 50ZIP-29N | Nominal diameter (mm): 34,5; Inside diameter (mm): 29,0; Outside diameter (mm): 34,5; Mass (kg/m): 0,153 | |
| 50ZIP-36N | Nominal diameter (mm): 42,5; Inside diameter (mm): 36,0; Outside diameter (mm): 42,5; Mass (kg/m): 0,198 | |
| 50ZIP-48N | Nominal diameter (mm): 54,5; Inside diameter (mm): 48,5; Outside diameter (mm): 54,5; Mass (kg/m): 0,258 |
