NV1 arched crossarm — 60 × 60
Reference: NV1 60×60

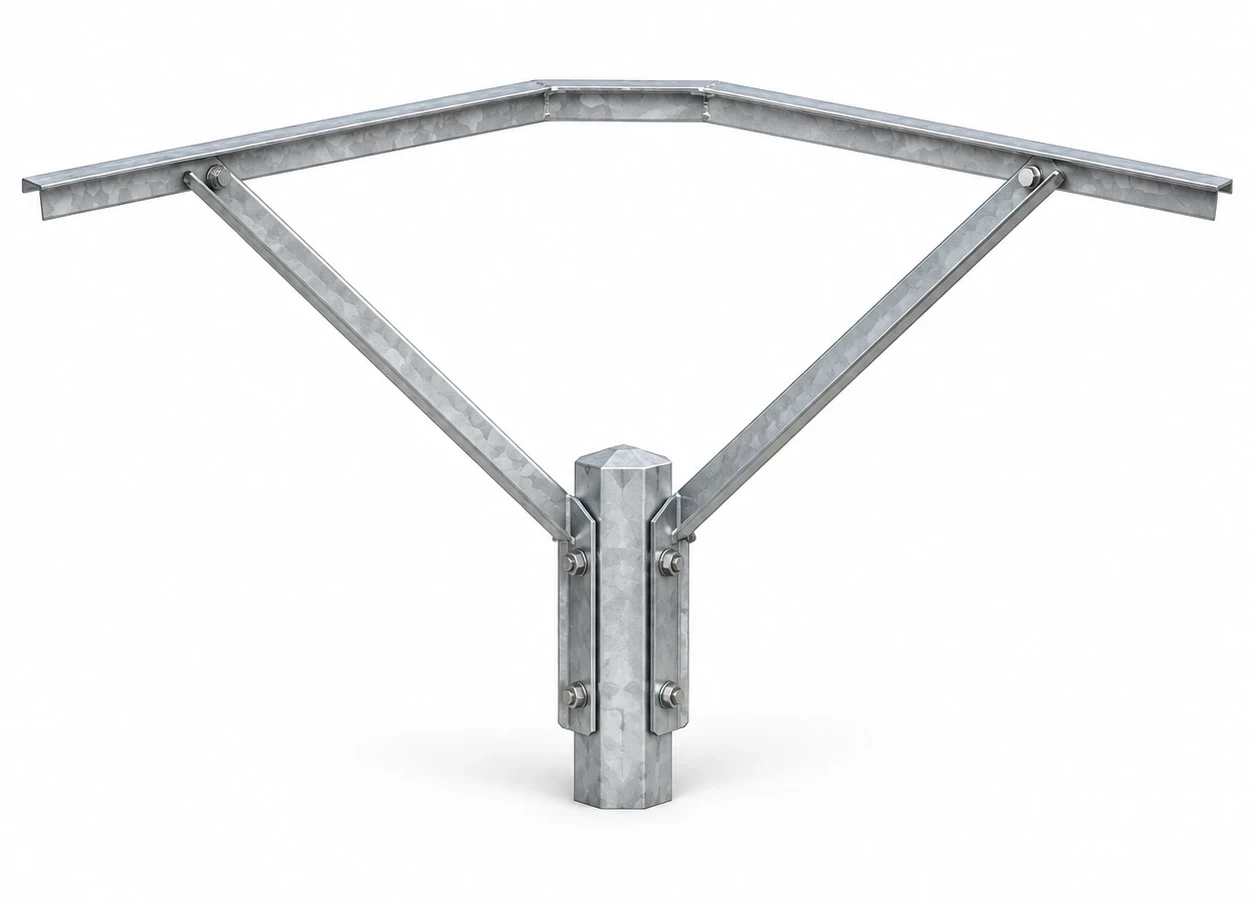

Illustration created for MWB. Configuration and dimensions depend on the selected specification.
At a glance
NV1 crossarm for the conductor arrangement of an overhead line, selected together with insulators and pole fixings.
- Type
- NV1
- Geometry
- Arched beam and two braces
- Product family
- Overhead line crossarm
- Construction
- Assembled steel members
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail
The NV1 crossarm provides the metal structure for the line fittings. Its arched shape arranges conductor positions around the pole.
The 60 × 60 designation identifies the listed version. It does not establish overall length, phase spacing or permissible load; these values must be confirmed on the manufacturing drawing.
For replacement work, provide an installation photograph and measured attachment details. NV1, NV2 and NVR1 are distinct configurations; interchangeability must not be assumed.
Applications
- Overhead distribution lines
- Arrangement of insulator attachment points
- New installation or replacement to drawing
For a tailored quotation
Specify pole type and dimensions, line arrangement, mounting centres, insulators, longitudinal and transverse loads, and quantities. Define bolts and accessories in the enquiry.
Contact our team ↗Specifications
| Reference | NV1 60×60 |
|---|---|
| Type | NV1 |
| Geometry | Arched beam and two braces |
| Product family | Overhead line crossarm |
| Construction | Assembled steel members |
| Specified finish | Hot-dip galvanising |
| Pole interface | Fixings matched to pole section |
| Permissible loads | According to exact reference and design documentation |
| Insulators and conductors | Selected separately |
