NVR1 arched crossarm
Reference: NVR1
Illustration created for MWB. Configuration and dimensions depend on the selected specification.
At a glance
NVR1 crossarm for the conductor arrangement of an overhead line, selected together with insulators and pole fixings.
- Type
- NVR1
- Geometry
- Beam with horizontal ends and bent mounting legs
- Product family
- Overhead line crossarm
- Construction
- Assembled steel members
Price, packaging and lead time confirmed for your quantity and destination.
View my selection and send the enquiry ↗The product in detail

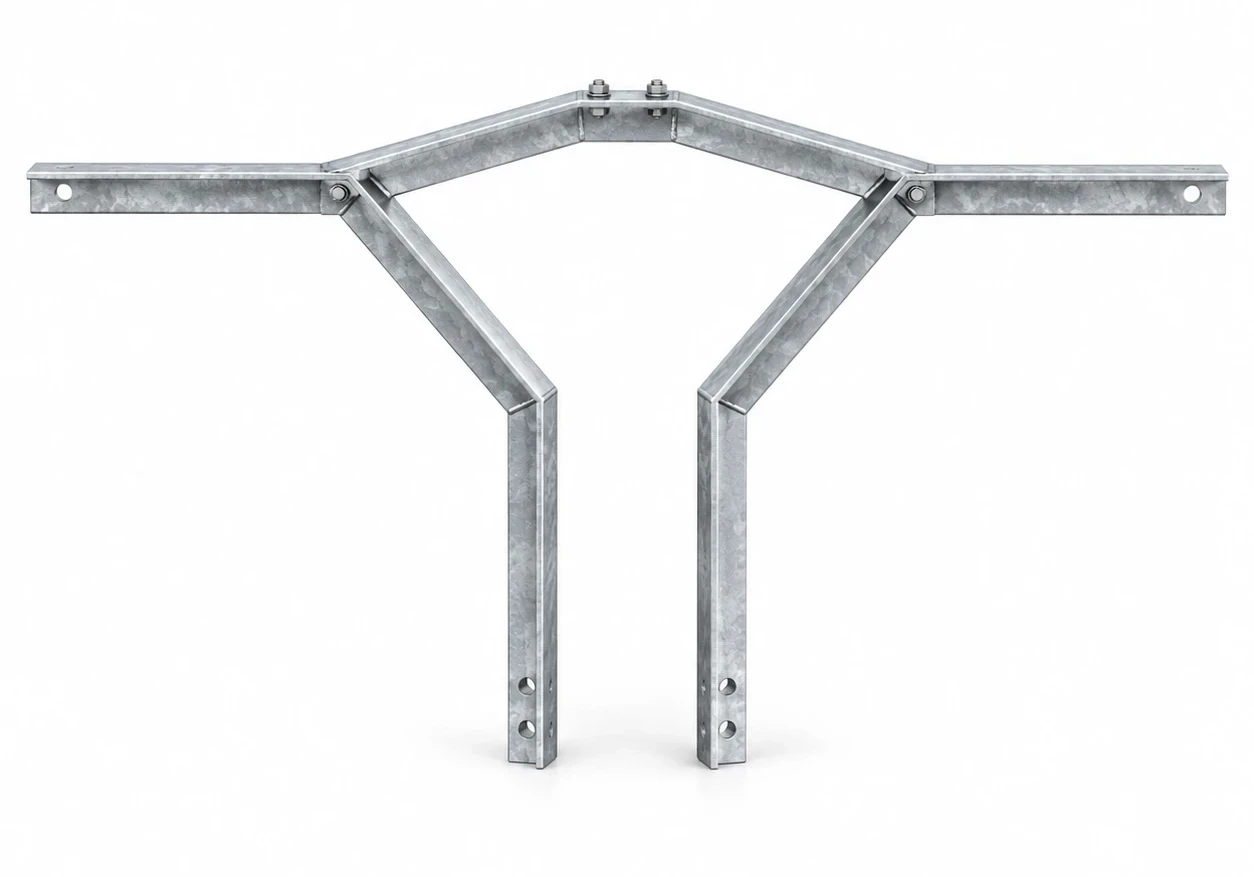

The NVR1 crossarm provides the metal structure for the line fittings. Its arched shape arranges conductor positions around the pole.
The NVR1 arrangement features horizontal outer arms and bent mounting legs. Mounting dimensions and attachment points must be checked against the selected reference drawing.
For replacement work, provide an installation photograph and measured attachment details. NV1, NV2 and NVR1 are distinct configurations; interchangeability must not be assumed.
Applications
- Overhead distribution lines
- Arrangement of insulator attachment points
- New installation or replacement to drawing
For a tailored quotation
Specify pole type and dimensions, line arrangement, mounting centres, insulators, longitudinal and transverse loads, and quantities. Define bolts and accessories in the enquiry.
Contact our team ↗Specifications
| Reference | NVR1 |
|---|---|
| Type | NVR1 |
| Geometry | Beam with horizontal ends and bent mounting legs |
| Product family | Overhead line crossarm |
| Construction | Assembled steel members |
| Specified finish | Hot-dip galvanising |
| Pole interface | Fixings matched to pole section |
| Permissible loads | According to exact reference and design documentation |
| Insulators and conductors | Selected separately |
